The recommended operating temperature range for the ST2329IQTR is -40°C to 85°C, as specified in the datasheet. However, it's essential to note that the device can operate at temperatures beyond this range, but with reduced performance and reliability.
To ensure reliable communication with the ST2329IQTR in noisy environments, it's recommended to use proper shielding, grounding, and decoupling techniques. Additionally, consider using differential signaling, such as RS-485, and implementing error-checking mechanisms, like CRC or checksums, to detect and correct data errors.
The maximum cable length supported by the ST2329IQTR depends on the baud rate, cable quality, and environmental conditions. As a general guideline, the maximum cable length for RS-232 is around 50 feet (15 meters) at 9600 bps, but it can be extended up to 1000 feet (300 meters) at lower baud rates. For RS-485, the maximum cable length can be up to 4000 feet (1200 meters) at 100 kbps.
Yes, the ST2329IQTR can be used in a multi-point configuration, but it's essential to ensure that the total bus capacitance does not exceed the recommended maximum value of 250 pF. Additionally, consider using repeaters or hubs to extend the bus length and improve signal integrity.
To handle hot-swapping or hot-plugging with the ST2329IQTR, it's recommended to use a robust power-on reset (POR) circuit and ensure that the device is properly powered down before disconnecting or connecting it. Additionally, consider using a buffer or isolator to protect the device from voltage transients and ESD events.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ST2329IQTR Overview

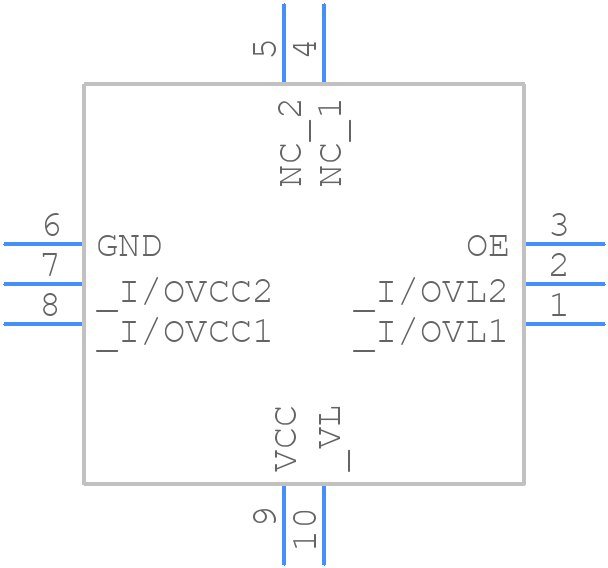

Use the download button to access the ST2329IQTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ST232,
or try a keyword search, such as Level Translators
