ST2349IQTR - STMicroelectronics

Description: 4-bit dual supply level translator without direction control pin and integrated pull-up QFN16 (2.6 x 1.8 mm)

Download ST2349IQTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

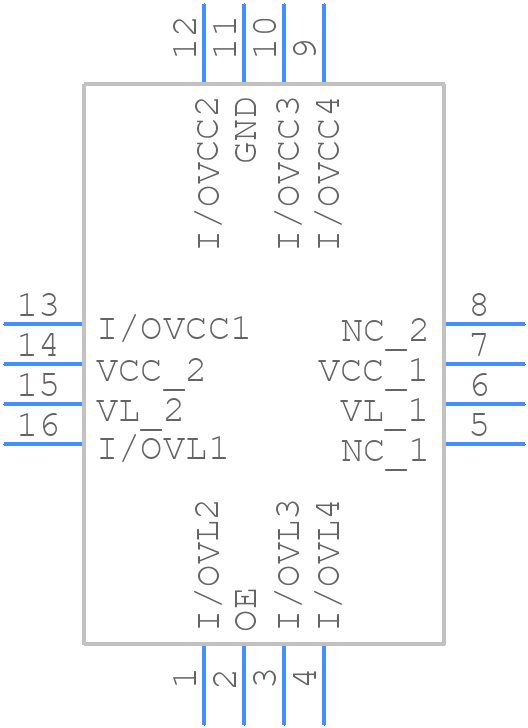

ST2349IQTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST2349IQTR - STMicroelectronics PCB footprint - Other - Other - QFN16 (2.6 x 1.8 x 0.55 )
click to zoom
3D Models
ST2349IQTR - STMicroelectronics - 3D model - Other - QFN16 (2.6 x 1.8 x 0.55 )
click to zoom

ST2349IQTR Details

  • Manufacturer Part Number:

    ST2349IQTR

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ST2349IQTR Overview

Use the download button to access the ST2349IQTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ST234, or try a keyword search, such as Level Translators
