ST2378ETTR - STMicroelectronics

Description: STMicroelectronics ST2378ETTR, Logic Level Translator, Open Drain, Totem Pole, 1.71 → 5.5 V, 20-Pin TSSOP

Download ST2378ETTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

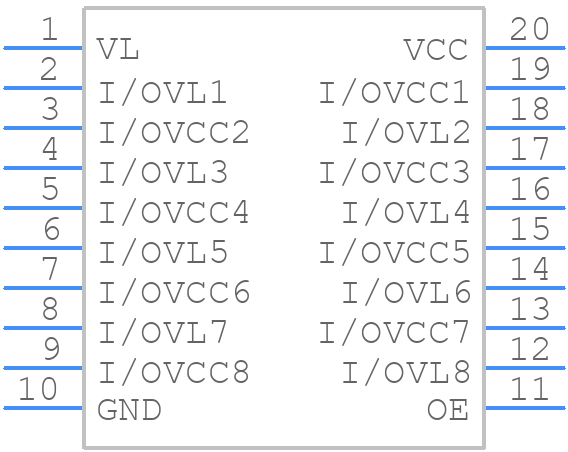

ST2378ETTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST2378ETTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - ST2378ETTR
click to zoom
3D Models
ST2378ETTR - STMicroelectronics - 3D model - Small Outline Packages - ST2378ETTR
click to zoom

ST2378ETTR Details

  • Manufacturer Part Number:

    ST2378ETTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

ST2378ETTR Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the ST2378ETTR is -40°C to 125°C.
  • Ensure a stable power supply with a voltage range of 1.62V to 3.6V, and decouple the power pins with capacitors to minimize noise and voltage drops.
  • The maximum data transfer rate of the ST2378ETTR is 100 Mbps.
  • Configure the ST2378ETTR by setting the appropriate registers and pins to select the desired communication protocol, such as UART, SPI, or I2C.
  • The reset pin is used to reset the device and return it to its default state. It can be used to recover from errors or to initialize the device during power-up.
