ST25R3912-AWLT - STMicroelectronics

Description: RFID Transponders NFC / HF RFID Reader IC

Download ST25R3912-AWLT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

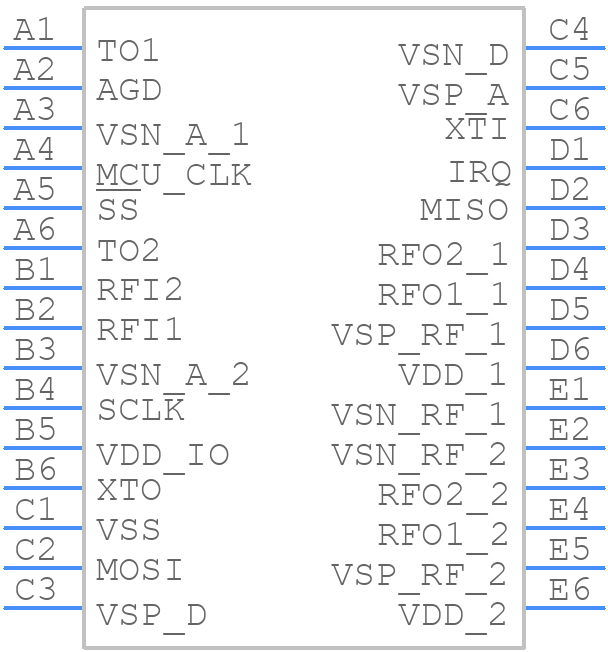

ST25R3912-AWLT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST25R3912-AWLT - STMicroelectronics PCB footprint - BGA - BGA - WLCSP30
click to zoom
3D Models
ST25R3912-AWLT - STMicroelectronics - 3D model - BGA - WLCSP30
click to zoom

ST25R3912-AWLT Details

  • Manufacturer Part Number:

    ST25R3912-AWLT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    WLCSP-30

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    8 Weeks

  • Date Of Intro:

    2017-07-28

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    3

  • JESD-30 Code:

    R-PBGA-B30

  • Length:

    3.065 mm

  • Number of Functions:

    1

  • Number of Terminals:

    30

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    0.68 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    2.865 mm

ST25R3912-AWLT Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the ST25R3912-AWLT is 148 kHz, as specified in the ISO/IEC 14443 standard.
  • The ST25R3912-AWLT uses an anti-collision algorithm to handle collisions between multiple tags. It uses a dynamic frame size adjustment and a binary search tree algorithm to resolve collisions.
  • The range of the ST25R3912-AWLT's NFC reader depends on the antenna design and the environment, but typically it can read tags at a distance of up to 5 cm (2 inches).
  • Yes, the ST25R3912-AWLT can be used for both NFC reader and NFC tag emulation. It has a built-in NFC tag emulator that can emulate a NFC tag, and it can also be used as an NFC reader to read and write data to NFC tags.
  • The power consumption of the ST25R3912-AWLT depends on the operating mode, but typically it consumes around 100 mA in active mode and less than 10 μA in standby mode.
