ST25R3916B-AQET - STMicroelectronics

Description: RFID Reader/Transponder IC 13.56MHz FeliCa, ISO 14443, ISO 15693, MIFARE, NFC I2C, SPI 2.6V ~ 5.5V 36-UFBGA, WLCSP

Download ST25R3916B-AQET Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

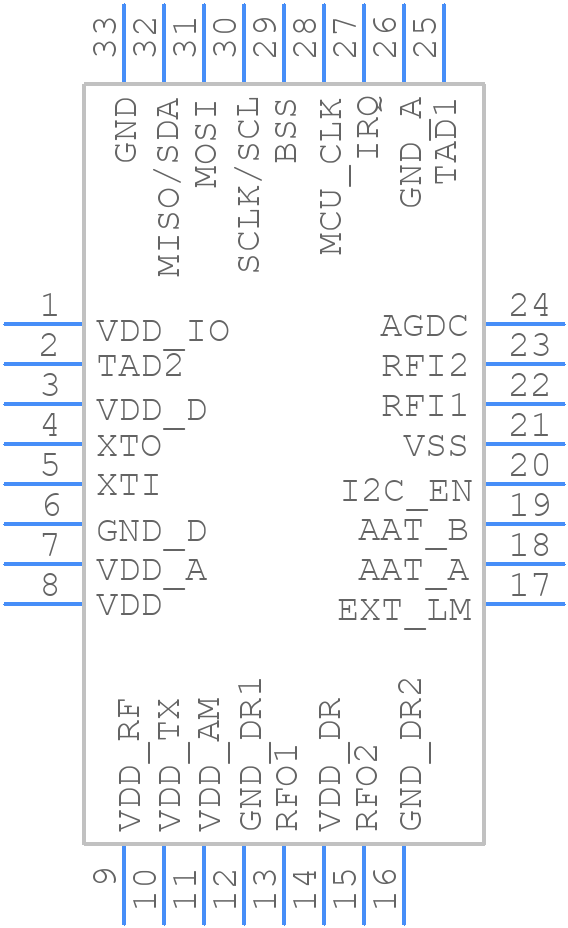

ST25R3916B-AQET - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST25R3916B-AQET - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UFQFPN32_2024
click to zoom
3D Models
ST25R3916B-AQET - STMicroelectronics - 3D model - Quad Flat No-Lead - UFQFPN32_2024
click to zoom

ST25R3916B-AQET Details

  • Manufacturer Part Number:

    ST25R3916B-AQET

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    UFQFPN-32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    STMicroelectronics

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.6 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    NFC CONTROLLER

ST25R3916B-AQET Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the ST25R3916B-AQET is 148 kHz, but it can also operate at lower frequencies such as 125 kHz, 100 kHz, and 50 kHz.
  • The ST25R3916B-AQET has built-in noise and interference rejection mechanisms, including a noise filter and a watchdog timer, to ensure reliable operation in noisy environments.
  • Yes, the ST25R3916B-AQET is a versatile device that can be used for both reader and tag applications, making it a cost-effective solution for various NFC use cases.
  • The typical current consumption of the ST25R3916B-AQET is around 12 mA in active mode and 1.5 mA in standby mode, making it suitable for battery-powered devices.
  • Yes, the ST25R3916B-AQET supports multiple protocols, including ISO/IEC 14443A/B, ISO/IEC 15693, and NFC Forum protocols, making it a versatile solution for various NFC applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ST25R3916B-AQET Overview

Use the download button to access the ST25R3916B-AQET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ST25R, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
