ST26025A - STMicroelectronics

ST26025A Details

• Manufacturer Part Number:

  ST26025A

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

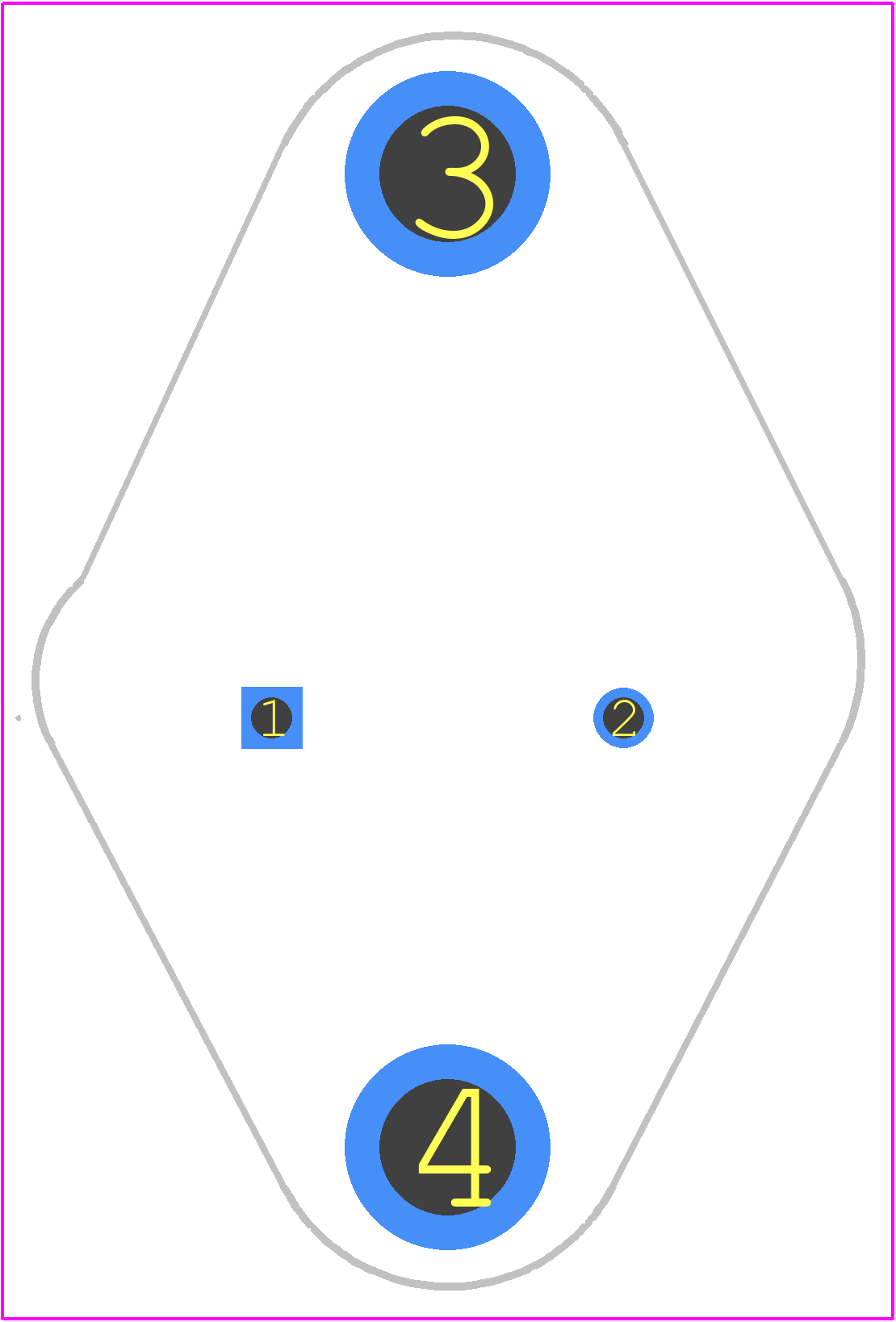

  TO-3, 2 PIN

• ECCN Code:

  EAR99

• Manufacturer:

  STMicroelectronics

• YTEOL:

  0

• Additional Feature:

  BUILT IN BIAS RESISTANCE RATIO IS 0.01

• Case Connection:

  COLLECTOR

• Collector Current-Max (IC):

  20 A

• Collector-Emitter Voltage-Max:

  100 V

• Configuration:

  DARLINGTON WITH BUILT-IN DIODE AND RESISTOR

• DC Current Gain-Min (hFE):

  200

• JESD-30 Code:

  O-MBFM-P2

• JESD-609 Code:

  e3

• Number of Elements:

  1

• Number of Terminals:

  2

• Operating Temperature-Max:

  200 °C

• Package Body Material:

  METAL

• Package Shape:

  ROUND

• Package Style:

  FLANGE MOUNT

• Polarity/Channel Type:

  PNP

• Power Dissipation-Max (Abs):

  160 W

• Surface Mount:

  NO

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  PIN/PEG

• Terminal Position:

  BOTTOM

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON
