ST33HTPH2032AHC3 - STMicroelectronics

Description: Trusted Platform Module 2.0 with TCG I2C interface

Download ST33HTPH2032AHC3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

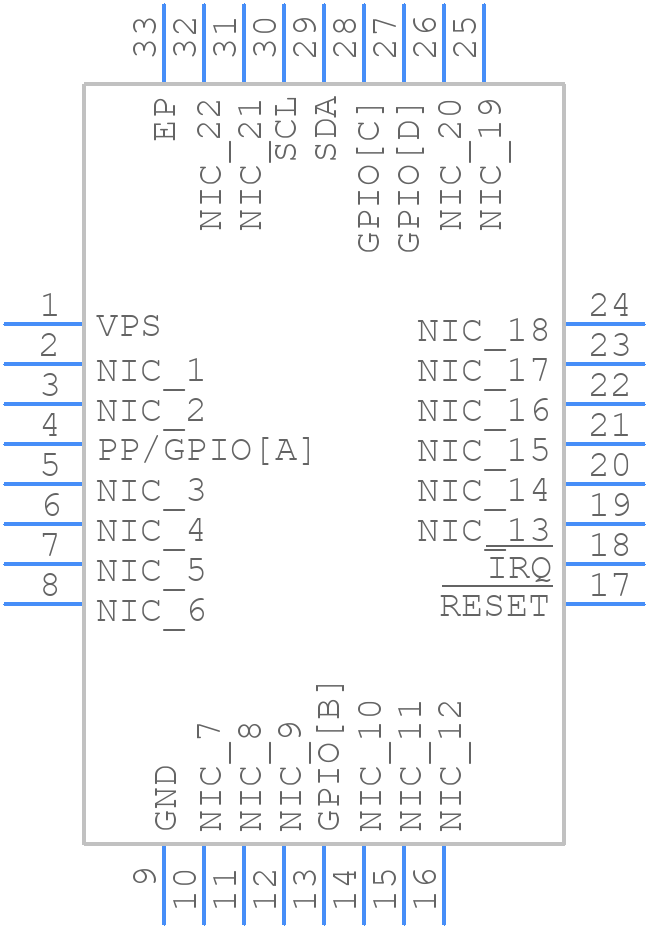

ST33HTPH2032AHC3 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST33HTPH2032AHC3 - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN32 (5x5mm)_1
click to zoom
3D Models
ST33HTPH2032AHC3 - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFPN32 (5x5mm)_1
click to zoom

ST33HTPH2032AHC3 Details

  • Manufacturer Part Number:

    ST33HTPH2032AHC3

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    VFQFPN-32

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    3

  • Additional Feature:

    ALSO OPERATES AT 3.3V NOMINAL VOLATGE

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

ST33HTPH2032AHC3 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4985, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • STMicroelectronics provides a secure boot implementation guide in the application note AN5156, which outlines the steps to implement secure boot using the ST33HTPH2032AHC3's built-in secure boot mechanism.
  • The ST33HTPH2032AHC3 has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to implement proper thermal management, such as using a heat sink, thermal interface material, and ensuring good airflow around the device.
  • Yes, the ST33HTPH2032AHC3 is designed to operate in harsh environments, including extreme temperatures, humidity, and vibration. However, it's essential to follow the recommended operating conditions and implement proper protection mechanisms to ensure reliable operation.
  • STMicroelectronics provides a troubleshooting guide in the application note AN4985, which outlines common issues, symptoms, and solutions for the ST33HTPH2032AHC3. Additionally, engineers can use debugging tools, such as oscilloscopes and logic analyzers, to identify and resolve issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ST33HTPH2032AHC3 Overview

Use the download button to access the ST33HTPH2032AHC3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ST33H, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
