Part Image

ST33HTPH2E28AHD0 - STMicroelectronics

Description: Trusted Platform Module 1.2 & 2.0 with TCG SPI interface

Download ST33HTPH2E28AHD0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

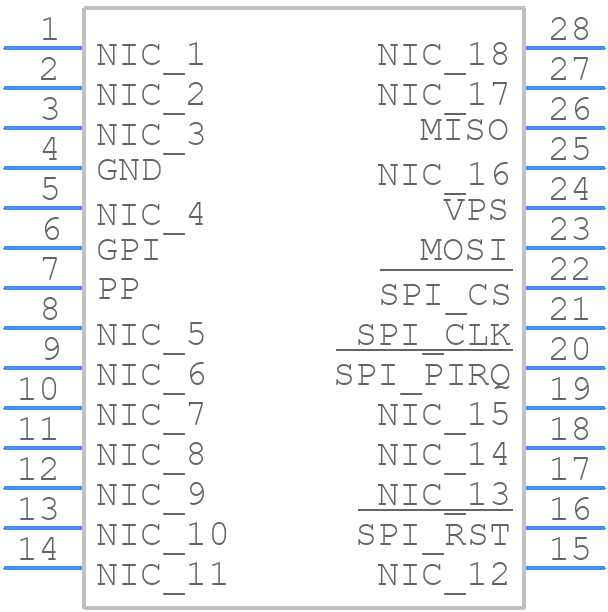

ST33HTPH2E28AHD0 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST33HTPH2E28AHD0 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP28
click to zoom
3D Models
ST33HTPH2E28AHD0 - STMicroelectronics - 3D model - Small Outline Packages - TSSOP28
click to zoom

ST33HTPH2E28AHD0 Details

  • Manufacturer Part Number:

    ST33HTPH2E28AHD0

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    TSSOP-28

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.30

  • Date Of Intro:

    2019-11-12

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    3

  • Additional Feature:

    ALSO OPERATES AT 3.3V NOMINAL VOLATGE

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    9.7 mm

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

ST33HTPH2E28AHD0 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5024, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The ST33HTPH2E28AHD0 has a built-in secure boot mechanism that can be configured using the STM32CubeProgrammer software. For firmware updates, STMicroelectronics recommends using the STM32CubeMX software to generate the update image and the STM32CubeProgrammer to perform the update. Additionally, the ST33HTPH2E28AHD0 supports secure firmware update protocols such as HTTPS and TLS.
  • The ST33HTPH2E28AHD0 has a maximum junction temperature of 125°C. To ensure reliable operation, it's essential to implement proper thermal management, such as using a heat sink, thermal interface material, and optimizing the PCB layout to minimize thermal resistance. STMicroelectronics provides thermal management guidelines in the datasheet and application notes.
  • The ST33HTPH2E28AHD0 has several low-power modes, including Sleep, Stop, and Standby. These modes can be configured using the STM32CubeMX software, which provides a graphical interface for configuring the device's power modes. Additionally, STMicroelectronics provides application notes and code examples to help implement low-power modes in firmware.
  • The ST33HTPH2E28AHD0 is designed to meet EMC and EMI standards, but it's still essential to follow best practices for PCB design, component selection, and shielding to minimize EMI and ensure EMC compliance. STMicroelectronics provides guidelines and recommendations for EMC and EMI in the datasheet and application notes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ST33HTPH2E28AHD0 Overview

Use the download button to access the ST33HTPH2E28AHD0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ST33H, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
