ST33HTPH2E32AHD0 - STMicroelectronics

Description: Flash-memory-based device combining TPM 1.2 and TPM 2.0 with an SPI interface

Download ST33HTPH2E32AHD0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

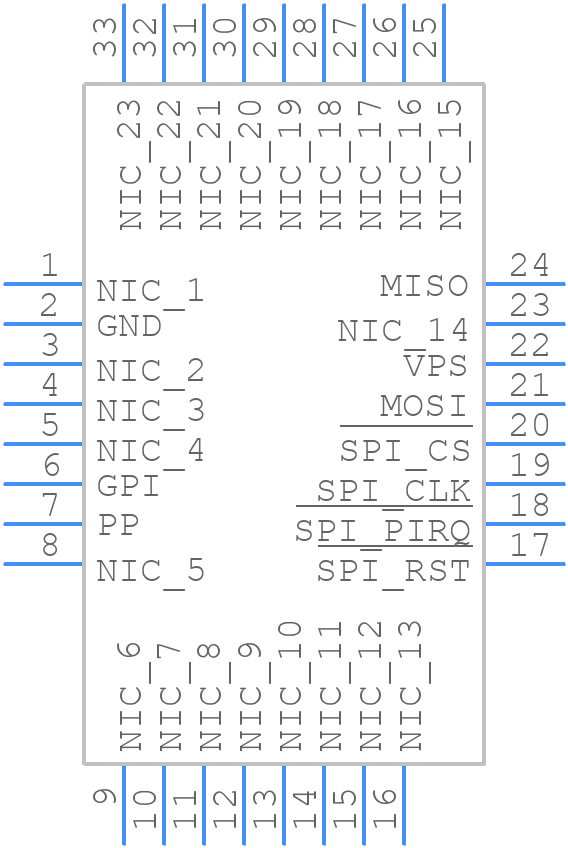

ST33HTPH2E32AHD0 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST33HTPH2E32AHD0 - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN32L 5x5x1mm 0.5pitch_1
click to zoom
3D Models
ST33HTPH2E32AHD0 - STMicroelectronics - 3D model - Quad Flat No-Lead - QFN32L 5x5x1mm 0.5pitch_1
click to zoom

ST33HTPH2E32AHD0 Details

  • Manufacturer Part Number:

    ST33HTPH2E32AHD0

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-32

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    20 Weeks

  • Date Of Intro:

    2019-11-12

  • Manufacturer:

    STMicroelectronics

  • Additional Feature:

    ALSO OPERATES AT 3.3V NOMINAL VOLATGE

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR
