ST33HTPH2X32AHC5 - STMicroelectronics

Description: Long-term evolution TPM 2.0 device with an I2C interface

Download ST33HTPH2X32AHC5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

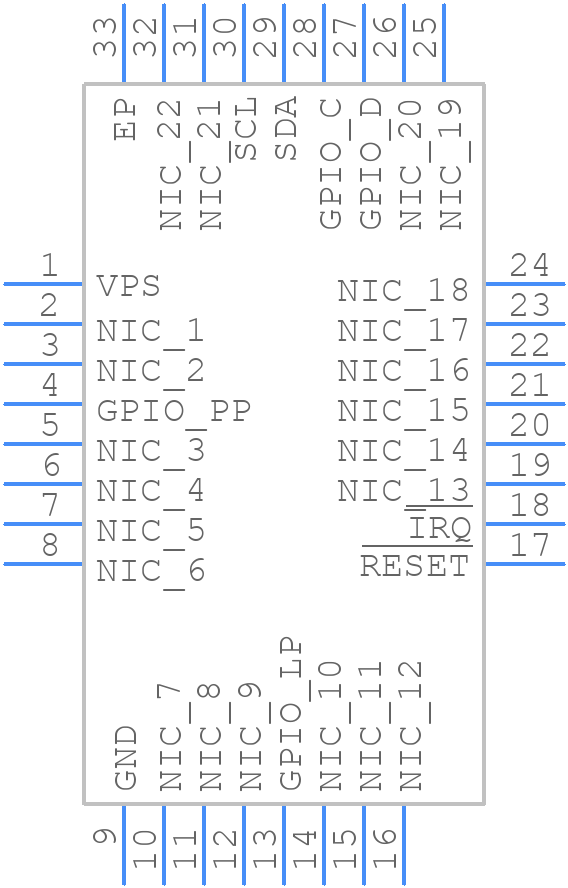

Symbol
ST33HTPH2X32AHC5 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST33HTPH2X32AHC5 - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN32L 5x5x1mm 0.5pitch_1
click to zoom
3D Models
ST33HTPH2X32AHC5 - STMicroelectronics - 3D model - Quad Flat No-Lead - QFN32L 5x5x1mm 0.5pitch_1
click to zoom

ST33HTPH2X32AHC5 Details

  • Manufacturer Part Number:

    ST33HTPH2X32AHC5

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    VFQFPN-32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.30

  • Date Of Intro:

    2019-12-09

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Additional Feature:

    ALSO AVAILABLE WITH 3.3V NOM SUPPLY

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

ST33HTPH2X32AHC5 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a reference design and layout guidelines in the 'ST33HTPH2X32AHC5 Reference Manual' (UM2255) and 'PCB Layout Guidelines for ST33HTPH2X32AHC5' (AN5273) application notes.
  • STMicroelectronics provides a 'Secure Boot and Firmware Update' application note (AN5128) that outlines the recommended approach for secure boot and firmware updates using the ST33HTPH2X32AHC5.
  • The 'ST33HTPH2X32AHC5 Datasheet' (DS13143) provides information on the external oscillator and clock circuitry requirements, including frequency, tolerance, and load capacitance.
  • STMicroelectronics provides a 'Power Consumption Optimization' application note (AN5272) that outlines techniques and best practices for reducing power consumption in ST33HTPH2X32AHC5-based designs.
  • The 'ST33HTPH2X32AHC5 Security Target' (ST033) document outlines the recommended security protocols and cryptographic algorithms for secure communication, including TLS, SSL, and ECC-based cryptography.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ST33HTPH2X32AHC5 Overview

Use the download button to access the ST33HTPH2X32AHC5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ST33H, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
