ST33HTPH2X32AHD4 - STMicroelectronics

Description: STSAFE-TPM ST33TPHF2XSPI : TPM 2.0 device with an SPI interface

Download ST33HTPH2X32AHD4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

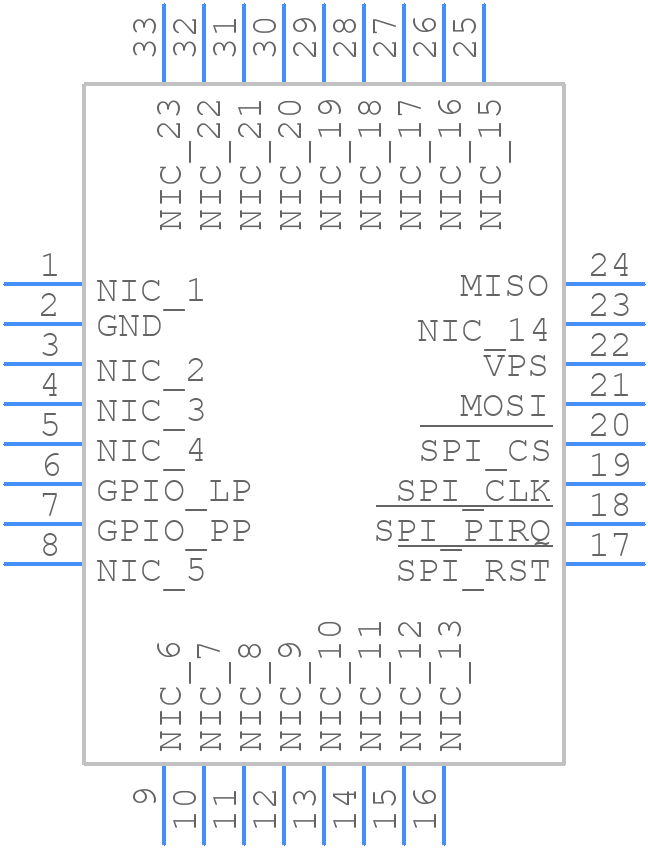

ST33HTPH2X32AHD4 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST33HTPH2X32AHD4 - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN32 (5x5mm)_1
click to zoom
3D Models
ST33HTPH2X32AHD4 - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFPN32 (5x5mm)_1
click to zoom

ST33HTPH2X32AHD4 Details

  • Manufacturer Part Number:

    ST33HTPH2X32AHD4

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Manufacturer:

    STMicroelectronics

  • Additional Feature:

    ALSO OPERATES AT 3.3V NOMINAL VOLATGE

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

ST33HTPH2X32AHD4 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout guide in their application note AN5021, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The ST33HTPH2X32AHD4 has a built-in secure boot mechanism that can be implemented using the STM32CubeMX software tool. This tool provides a graphical interface to configure the secure boot process, including generating the necessary keys and certificates.
  • The ST33HTPH2X32AHD4 has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to implement proper thermal management, including heat sinks, thermal interfaces, and airflow management. STMicroelectronics provides thermal management guidelines in their application note AN5021.
  • STMicroelectronics provides a comprehensive troubleshooting guide in their application note AN5156, which covers common issues and debugging techniques for the cryptographic functions of the ST33HTPH2X32AHD4.
  • The recommended power-up and power-down sequences for the ST33HTPH2X32AHD4 are described in the datasheet, section 6.2. It's essential to follow these sequences to ensure proper operation and prevent damage to the chip.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ST33HTPH2X32AHD4 Overview

Use the download button to access the ST33HTPH2X32AHD4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ST33H, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
