ST33HTPH2X32AHD5 - STMicroelectronics

Description: STSAFE-TPM ST33TPHF2XI2C: TPM 2.0 device with an I²C interface

Download ST33HTPH2X32AHD5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

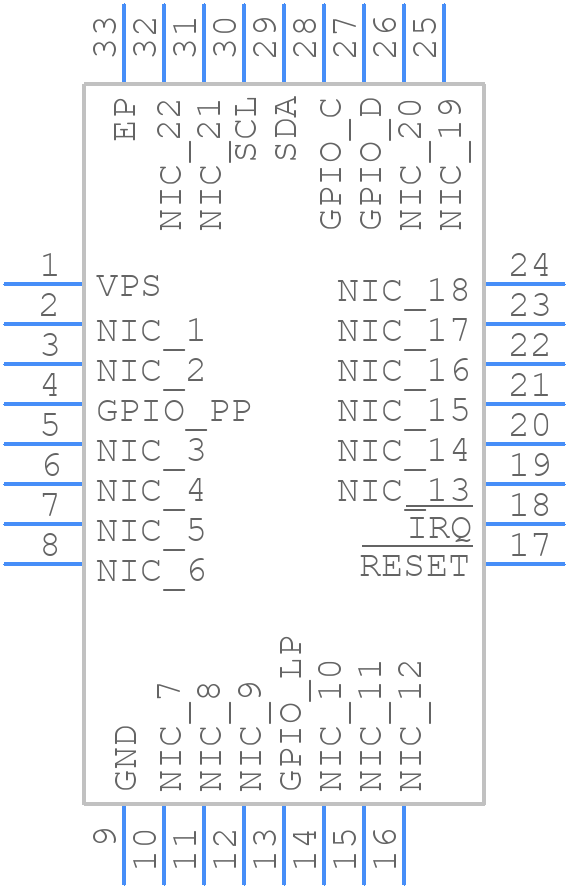

ST33HTPH2X32AHD5 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST33HTPH2X32AHD5 - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN32 is a 32-lead, 5 × 5 mm, 0.5 mm pitch
click to zoom
3D Models
ST33HTPH2X32AHD5 - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFPN32 is a 32-lead, 5 × 5 mm, 0.5 mm pitch
click to zoom

ST33HTPH2X32AHD5 Details

  • Manufacturer Part Number:

    ST33HTPH2X32AHD5

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    20 Weeks

  • Date Of Intro:

    2020-06-18

  • Manufacturer:

    STMicroelectronics

  • Additional Feature:

    ALSO AVAILABLE WITH 3.3V NOM SUPPLY

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

ST33HTPH2X32AHD5 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5024, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • STMicroelectronics provides a secure boot implementation guide in the application note AN5156, which outlines the steps to implement secure boot using the ST33HTPH2X32AHD5's built-in secure boot mechanism.
  • The ST33HTPH2X32AHD5 has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to implement proper thermal management, such as using a heat sink, thermal interface material, and ensuring good airflow around the device.
  • The ST33HTPH2X32AHD5 has several low-power modes, including sleep mode and shutdown mode. To configure the device for low-power operation, refer to the datasheet and application notes AN5024 and AN5156, which provide guidelines for optimizing power consumption.
  • STMicroelectronics recommends using a 32.768 kHz crystal oscillator with a load capacitance of 12 pF to 20 pF for optimal performance. The datasheet provides more information on oscillator and crystal selection.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ST33HTPH2X32AHD5 Overview

Use the download button to access the ST33HTPH2X32AHD5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ST33H, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
