ST33HTPH2X32AHD8 - STMicroelectronics

Description: Security ICs / Authentication ICs Long-term evolution TPM 2.0 device an SPI interface

Download ST33HTPH2X32AHD8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

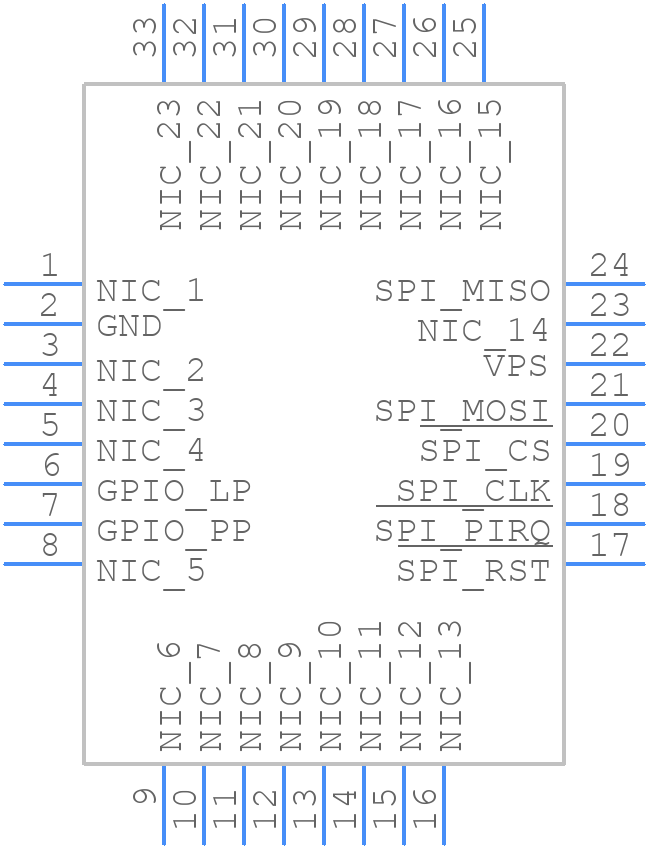

Symbol
ST33HTPH2X32AHD8 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST33HTPH2X32AHD8 - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFP32-1
click to zoom
3D Models
ST33HTPH2X32AHD8 - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFP32-1
click to zoom

ST33HTPH2X32AHD8 Details

  • Manufacturer Part Number:

    ST33HTPH2X32AHD8

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Date Of Intro:

    2020-06-26

  • Manufacturer:

    STMicroelectronics

  • Additional Feature:

    ALSO OPERATES AT 3.3V NOMINAL VOLATGE

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

ST33HTPH2X32AHD8 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the ST33HTPH2X32AHD8 is -40°C to 105°C.
  • STMicroelectronics provides a Secure Boot Loader (SBL) and a set of guidelines for implementing secure boot mechanisms on the ST33HTPH2X32AHD8. Refer to the ST33HTPH2X32AHD8 Secure Boot Loader User Manual for more information.
  • The ST33HTPH2X32AHD8 supports various cryptographic algorithms, including AES, RSA, ECC, and SHA. Refer to the ST33HTPH2X32AHD8 datasheet for a comprehensive list of supported algorithms.
  • The ST33HTPH2X32AHD8 features a secure key storage area. To configure it, follow the guidelines outlined in the ST33HTPH2X32AHD8 datasheet and the ST33HTPH2X32AHD8 Secure Key Storage Application Note.
  • The power consumption characteristics of the ST33HTPH2X32AHD8 vary depending on the operating mode and frequency. Refer to the ST33HTPH2X32AHD8 datasheet for detailed power consumption specifications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ST33HTPH2X32AHD8 Overview

Use the download button to access the ST33HTPH2X32AHD8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ST33H, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
