ST33HTPH2X32AHE1 - STMicroelectronics

Description: Security ICs / Authentication ICs

Download ST33HTPH2X32AHE1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

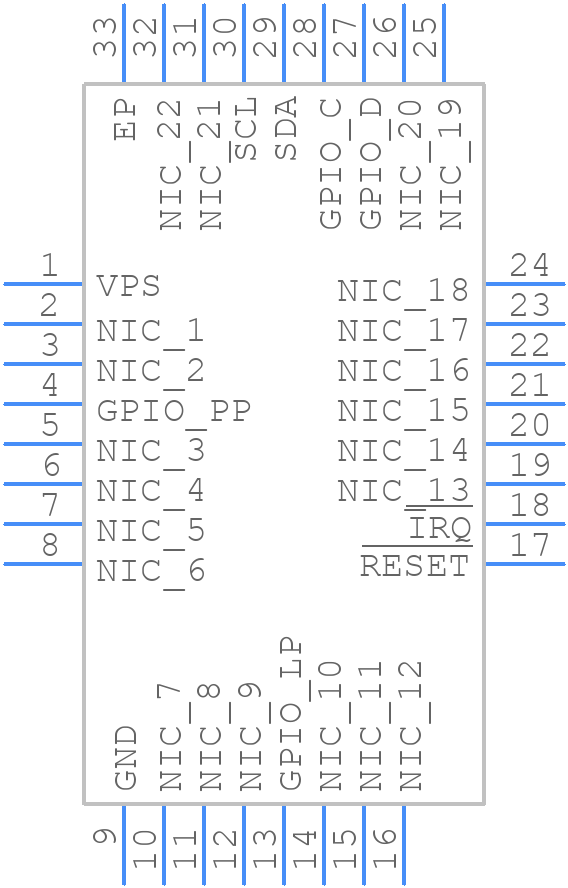

ST33HTPH2X32AHE1 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST33HTPH2X32AHE1 - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN32_2023
click to zoom
3D Models
ST33HTPH2X32AHE1 - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFPN32_2023
click to zoom

ST33HTPH2X32AHE1 Details

  • Manufacturer Part Number:

    ST33HTPH2X32AHE1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VFQFPN-32

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

ST33HTPH2X32AHE1 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout guide in their application note AN5024, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The ST33HTPH2X32AHE1 has a built-in secure boot mechanism that can be implemented using the STMicroelectronics' Secure Boot Loader (SBL) software. The SBL provides a secure way to boot the device and ensure the authenticity of the firmware.
  • The ST33HTPH2X32AHE1 has a maximum junction temperature of 125°C. To ensure reliable operation, it's essential to implement proper thermal management, such as using a heat sink, thermal interface material, and ensuring good airflow around the device.
  • STMicroelectronics provides a cryptographic library and a set of tools for debugging and troubleshooting cryptographic issues. Additionally, the chip's documentation provides guidance on error detection and correction mechanisms.
  • The ST33HTPH2X32AHE1 has specific power-up and power-down sequences that must be followed to ensure proper operation. The recommended sequences are outlined in the chip's datasheet and application notes.
