ST62E60CF1 footprint, schematic symbol and 3D model by STMicroelectronics

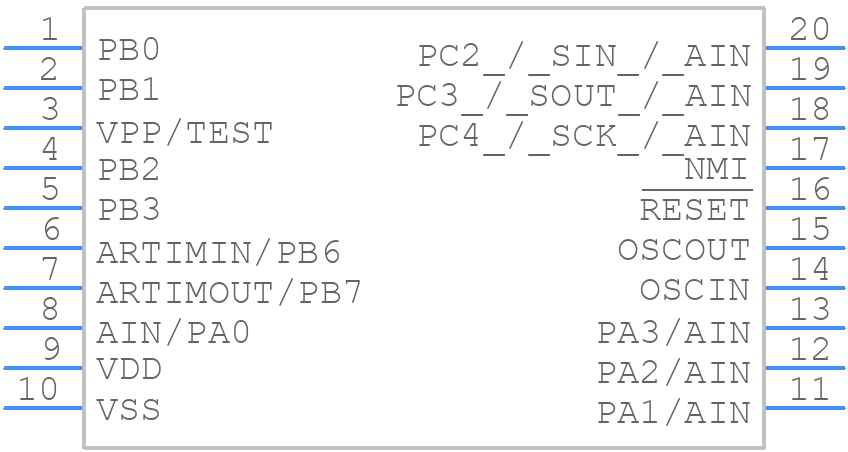

Symbol

click to zoom

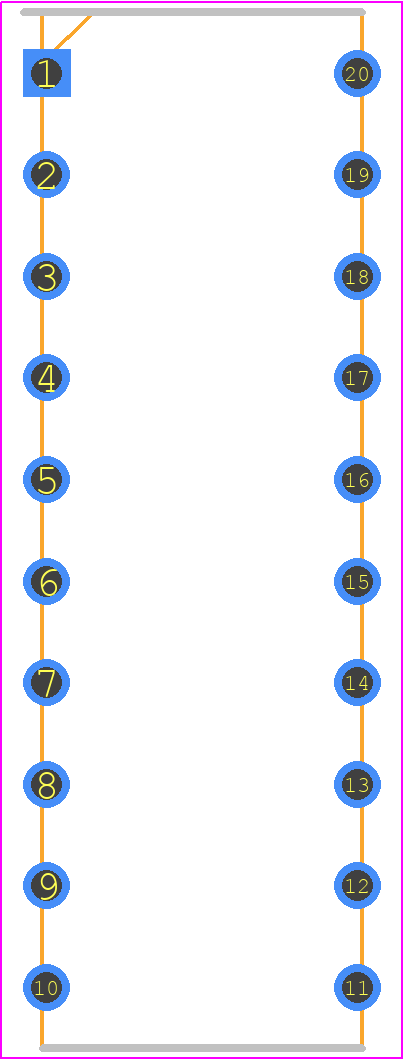

PCB Footprints

ST62E60CF1 - STMicroelectronics PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - 20-Pin Ceramic Side-Brazed Dual In-Line Package

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ST62E60CF1
Part Number ST62E60CF1
Manufacturer STMicroelectronics
Pin Count 20
Part Category Integrated Circuit
Package Category Ceramic Dual-In-Line Packages
Footprint Name Ceramic Dual-In-Line Packages - 20-Pin Ceramic Side-Brazed Dual In-Line Package
Released Date Jan 17, 2026
Last Modified Date Jan 17, 2026 6:00 AM UTC
Pinout / Pin List Click Here (Member Only)

ST62E60CF1 Details

Manufacturer Part Number:
ST62E60CF1
Brand Name:
STMicroelectronics
Part Life Cycle Code:
Active
Part Package Code:
DIP
Package Description:
DIP-20
Pin Count:
20
HTS Code:
8542.31.00.15
Manufacturer:
STMicroelectronics
YTEOL:
4
Has ADC:
YES
Additional Feature:
ALSO OPERATES AT 3V MINIMUM SUPPLY
Bit Size:
8
Boundary Scan:
YES
CPU Family:
ST6200
Clock Frequency-Max:
8 MHz
DAC Channels:
YES
DMA Channels:
NO
JESD-30 Code:
R-GDIP-T20
JESD-609 Code:
e0
Length:
25.4 mm
Number of I/O Lines:
13
Number of Terminals:
20
On Chip Program ROM Width:
8
Operating Temperature-Max:
70 °C
PWM Channels:
YES
Package Body Material:
CERAMIC, GLASS-SEALED
Package Code:
WDIP
Package Equivalence Code:
DIP20,.3
Package Shape:
RECTANGULAR
Package Style:
IN-LINE, WINDOW
Qualification Status:
Not Qualified
RAM (bytes):
128
ROM (words):
3884
ROM Programmability:
UVPROM
Seated Height-Max:
3.63 mm
Speed:
8 MHz
Supply Current-Max:
7 mA
Supply Voltage-Max:
6 V
Supply Voltage-Min:
4 V
Supply Voltage-Nom:
4 V
Surface Mount:
NO
Technology:
HCMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
TIN LEAD
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Width:
7.62 mm
uPs/uCs/Peripheral ICs Type:
MICROCONTROLLER

ST62E60CF1 Frequently Asked Questions (FAQs)

The recommended operating temperature range for the ST62E60CF1 is -40°C to 85°C, as specified in the datasheet. However, it's essential to note that the device can operate at temperatures beyond this range, but with reduced performance and reliability.
To ensure reliable communication in a noisy environment, it's recommended to use proper shielding, grounding, and decoupling techniques. Additionally, implementing error detection and correction mechanisms, such as checksums or CRCs, can help detect and correct errors caused by noise.
The maximum clock frequency that the ST62E60CF1 can support is 16 MHz, as specified in the datasheet. However, it's essential to ensure that the clock signal is clean and stable to avoid any issues with the device's operation.
The ST62E60CF1's flash memory can be programmed using a variety of methods, including in-system programming (ISP), in-application programming (IAP), and programming through a dedicated programmer. The specific programming method will depend on the development environment and the requirements of the application.
The power consumption characteristics of the ST62E60CF1 depend on the operating mode, clock frequency, and other factors. According to the datasheet, the typical active mode current consumption is around 10 mA at 16 MHz, while the standby mode current consumption is around 10 μA. It's essential to consult the datasheet and application notes for more detailed information on power consumption.
