ST62T03CM3 - STMicroelectronics

Description: 8-bit MCUs with A/D converter, two timers, oscillator safeguard & safe reset

Download ST62T03CM3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

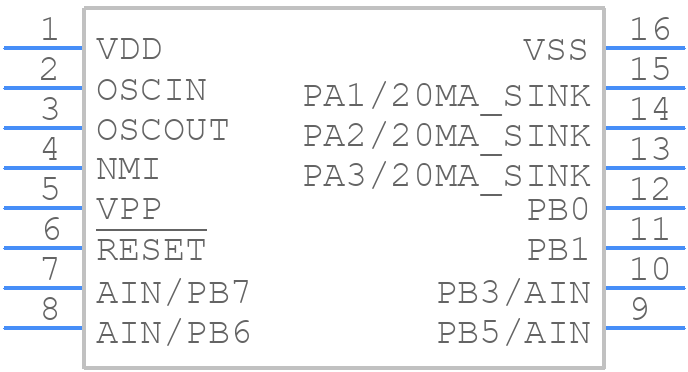

ST62T03CM3 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST62T03CM3 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - M25P16_SO16W
click to zoom
3D Models
ST62T03CM3 - STMicroelectronics - 3D model - Small Outline Packages - M25P16_SO16W
click to zoom

ST62T03CM3 Details

  • Manufacturer Part Number:

    ST62T03CM3

  • Brand Name:

    STMicroelectronics

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    0.300 INCH, PLASTIC, SOP-16

  • Pin Count:

    16

  • HTS Code:

    8542.31.00.15

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Has ADC:

    YES

  • Additional Feature:

    ALSO OPERATES AT 3V MINIMUM SUPPLY

  • Bit Size:

    8

  • Boundary Scan:

    NO

  • CPU Family:

    ST6200

  • Clock Frequency-Max:

    8 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    9

  • Number of Terminals:

    16

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    NO

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    64

  • ROM (words):

    1024

  • ROM Programmability:

    OTPROM

  • Seated Height-Max:

    2.65 mm

  • Speed:

    8 MHz

  • Supply Current-Max:

    4.8 mA

  • Supply Voltage-Max:

    6 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

ST62T03CM3 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the ST62T03CM3 is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device can operate at temperatures beyond this range, but with reduced performance and reliability.
  • To ensure proper power supply, connect the VDD pin to a stable 3.3V power source, and the VSS pin to ground. Additionally, decouple the power supply with a 10uF capacitor between VDD and VSS to reduce noise and ensure stable operation.
  • The ST62T03CM3 can operate at a maximum clock frequency of 32 MHz, as specified in the datasheet. However, it's essential to ensure that the clock signal is stable and within the recommended frequency range to avoid any issues with the device's operation.
  • To configure the ST62T03CM3 for low-power operation, use the Power Management Unit (PMU) to control the power modes. The PMU allows you to select from various power modes, such as Sleep, Stop, and Standby, to reduce power consumption. Additionally, you can use the clock gating feature to disable clocks to unused peripherals to further reduce power consumption.
  • The maximum current rating for the GPIO pins on the ST62T03CM3 is 20mA per pin, as specified in the datasheet. However, it's essential to ensure that the total current drawn from the device does not exceed the recommended maximum current rating to avoid any damage to the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ST62T03CM3 Overview

Use the download button to access the ST62T03CM3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ST62T, or try a keyword search, such as Microcontrollers
