ST62T15CM6 - STMicroelectronics

Description: 8-bit MCUs with A/D converter, two timers, oscillator safeguard & safe reset

Download ST62T15CM6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

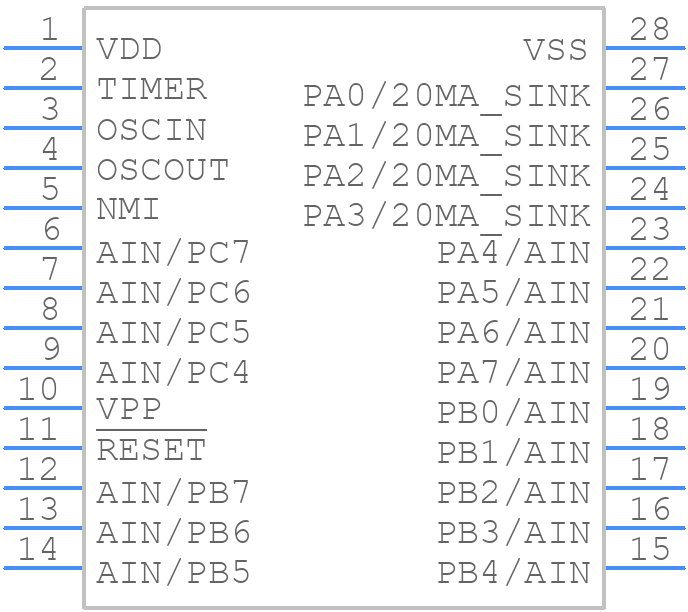

ST62T15CM6 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST62T15CM6 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-28-1
click to zoom
3D Models
ST62T15CM6 - STMicroelectronics - 3D model - Small Outline Packages - SO-28-1
click to zoom

ST62T15CM6 Details

  • Manufacturer Part Number:

    ST62T15CM6

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    0.300 INCH, PLASTIC, SOP-28

  • Pin Count:

    28

  • HTS Code:

    8542.31.00.15

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Has ADC:

    YES

  • Additional Feature:

    ALSO OPERATES AT 3V MINIMUM SUPPLY

  • Bit Size:

    8

  • Boundary Scan:

    YES

  • CPU Family:

    ST6200

  • Clock Frequency-Max:

    8 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    NO

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    17.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    20

  • Number of Terminals:

    28

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    NO

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    250

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    64

  • ROM (words):

    1836

  • ROM Programmability:

    OTPROM

  • Seated Height-Max:

    2.65 mm

  • Speed:

    8 MHz

  • Supply Current-Max:

    3.5 mA

  • Supply Voltage-Max:

    6 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    HCMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

ST62T15CM6 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout for the ST62T15CM6 in the application note AN4566, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Additionally, consider using thermal management techniques such as heat sinks, thermal interfaces, and airflow to keep the device within its specified temperature range.
  • While the datasheet specifies the recommended operating voltage range, it's essential to note that the maximum allowed voltage on the input pins is typically 5.5V, which is higher than the recommended VCC voltage of 5V. However, it's crucial to ensure that the input voltage does not exceed 5.5V to prevent damage to the device.
  • The ST62T15CM6 has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during manufacturing, assembly, and testing. This includes using ESD-safe materials, grounding straps, and ionizers to minimize the risk of ESD damage.
  • The recommended clock frequency for the ST62T15CM6 is up to 16 MHz, but it's essential to consider the specific application requirements and ensure that the clock frequency does not exceed the maximum specified frequency to prevent overheating and ensure reliable operation.
