ST62T55CB6 - STMicroelectronics

Description: 8-bit MCUs with ADC, safe reset, auto-reload timer, EEPROM and SPI

Download ST62T55CB6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

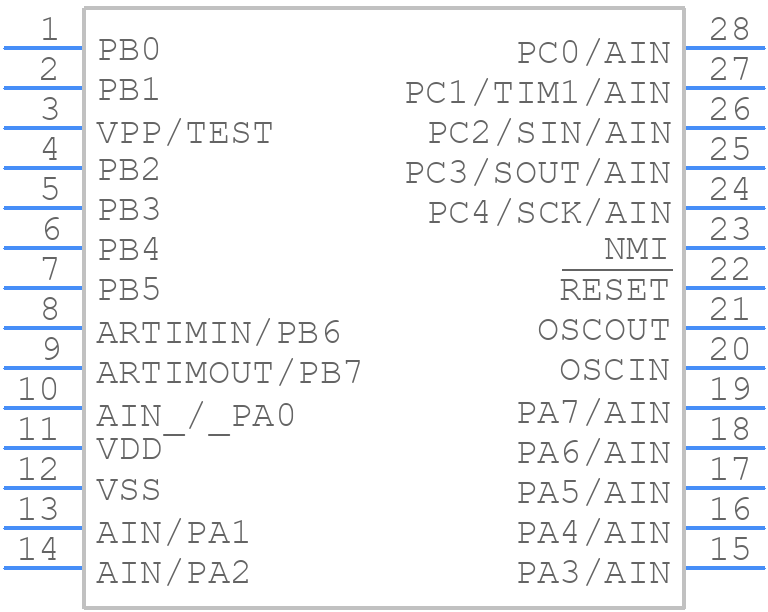

ST62T55CB6 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST62T55CB6 - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 28-Pin DIP 600-mil Width
click to zoom
3D Models
ST62T55CB6 - STMicroelectronics - 3D model - Dual-In-Line Packages - 28-Pin DIP 600-mil Width
click to zoom

ST62T55CB6 Details

  • Manufacturer Part Number:

    ST62T55CB6

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    DIP-28

  • Pin Count:

    28

  • HTS Code:

    8542.31.00.15

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Has ADC:

    YES

  • Additional Feature:

    ALSO OPERATES AT 3V MINIMUM SUPPLY

  • Bit Size:

    8

  • Boundary Scan:

    YES

  • CPU Family:

    ST6200

  • Clock Frequency-Max:

    8 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    R-PDIP-T28

  • JESD-609 Code:

    e3

  • Length:

    37.4 mm

  • Number of I/O Lines:

    21

  • Number of Terminals:

    28

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP28,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    128

  • ROM (words):

    3884

  • ROM Programmability:

    OTPROM

  • Seated Height-Max:

    6.35 mm

  • Speed:

    8 MHz

  • Supply Current-Max:

    7 mA

  • Supply Voltage-Max:

    6 V

  • Supply Voltage-Min:

    4 V

  • Supply Voltage-Nom:

    4 V

  • Surface Mount:

    NO

  • Technology:

    HCMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    15.24 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

ST62T55CB6 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the ST62T55CB6 is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device can operate at temperatures beyond this range, but with reduced performance and reliability.
  • To ensure proper power supply, connect the VCC pin to a stable 5V power source, and the VSS pin to ground. Additionally, decouple the power supply lines with a 100nF capacitor to reduce noise and ensure reliable operation.
  • The ST62T55CB6 can operate at a maximum clock frequency of 16 MHz, as specified in the datasheet. However, it's recommended to operate the device at a lower frequency to ensure reliable operation and reduce power consumption.
  • The ST62T55CB6 can be programmed using a variety of methods, including in-system programming (ISP), in-application programming (IAP), and programming through a dedicated programmer. STMicroelectronics provides a range of development tools and software, such as the ST62xx Flash Programmer, to facilitate programming and development.
  • The reset pin (RST) on the ST62T55CB6 is an active-low input that, when asserted, resets the device and initializes it to its default state. The RST pin can be connected to a push-button or a dedicated reset circuit to provide a manual reset capability.
