ST6G3238BETBR - STMicroelectronics

Description: Dual supply level translator for SD/ MINISD/ T-FLASH With ±8KV contact discharge ESD protection

Download ST6G3238BETBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

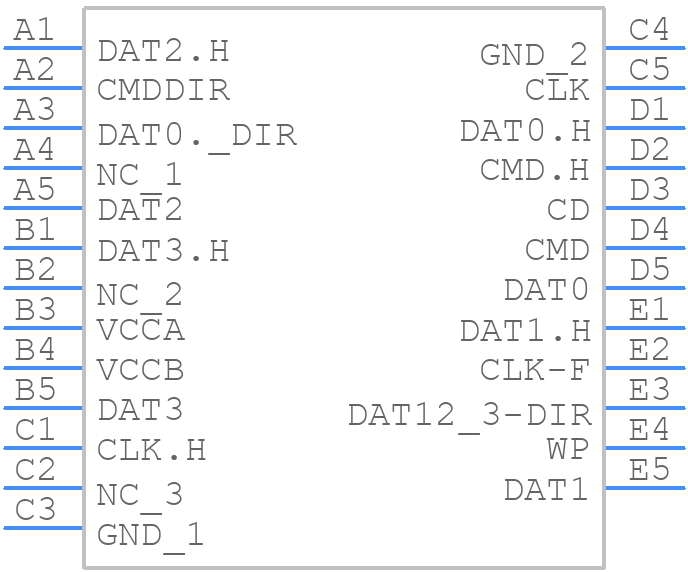

ST6G3238BETBR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST6G3238BETBR - STMicroelectronics PCB footprint - BGA - BGA - ST6G3238BETBR
click to zoom
3D Models
ST6G3238BETBR - STMicroelectronics - 3D model - BGA - ST6G3238BETBR
click to zoom

ST6G3238BETBR Details

  • Manufacturer Part Number:

    ST6G3238BETBR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    BGA

  • Package Description:

    UTFBGA-25

  • Pin Count:

    25

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Delay-Max:

    7.2 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    S-PBGA-B25

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    25

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Equivalence Code:

    BGA25,5X5,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.16 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.4 V

  • Supply Voltage-Nom:

    1.65 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    1.4 V

  • Supply Voltage1-Nom:

    1.65 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Gold (Ni/Au) - electrolytic

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ST6G3238BETBR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane to reduce thermal resistance.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including junction temperature (Tj) and ambient temperature (Ta). Ensure proper heat sinking, and consider using a heat sink or thermal interface material to reduce thermal resistance.
  • The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, for reliable operation, it's recommended to keep the input voltage within the recommended operating range of 3.3V ± 10%.
  • The ST6G3238BETBR is designed for low-to-medium frequency applications. While it can operate at higher frequencies, its performance may degrade. For high-frequency applications, consider using a device specifically designed for high-frequency operation, such as the ST6G32438BETBR.
  • The ST6G3238BETBR has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-protected environment.
