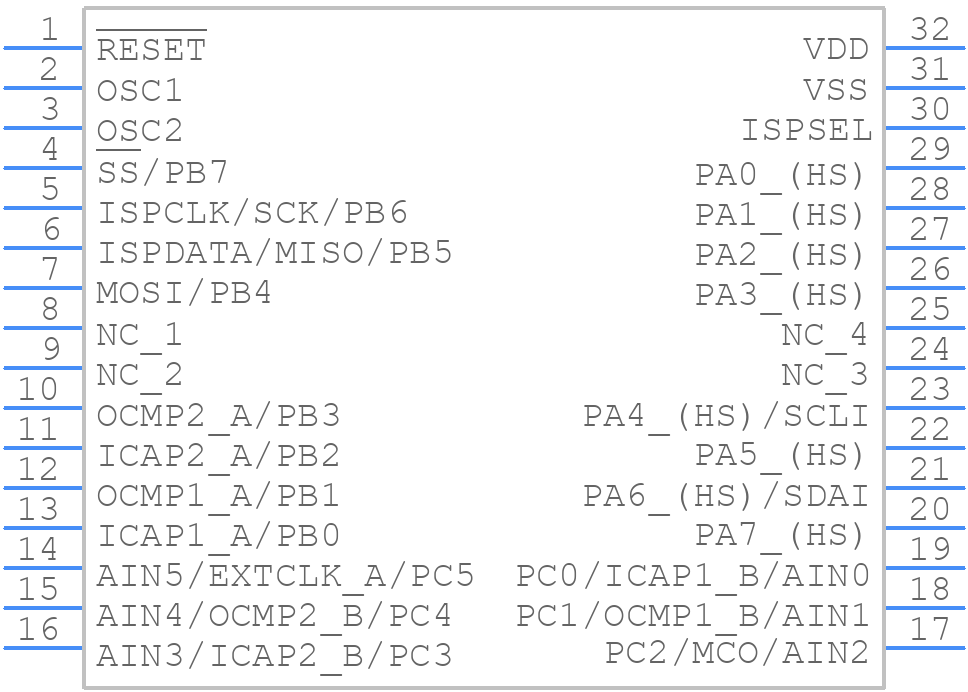

ST72C104G1B6 - STMicroelectronics

ST72C104G1B6 Details

• Manufacturer Part Number:

  ST72C104G1B6

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

• Package Description:

  DIP-32

• Pin Count:

  32

• HTS Code:

  8542.31.00.15

• Manufacturer:

  STMicroelectronics

• YTEOL:

  0

• Has ADC:

  NO

• Additional Feature:

  ALSO OPERATES FROM 3.2 TO 5.5V SUUPLY

• Bit Size:

  8

• Boundary Scan:

  NO

• CPU Family:

  ST72

• Clock Frequency-Max:

  16 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• JESD-30 Code:

  R-PDIP-T32

• JESD-609 Code:

  e3

• Length:

  27.94 mm

• Number of I/O Lines:

  22

• Number of Terminals:

  32

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SDIP

• Package Equivalence Code:

  SDIP32,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE, SHRINK PITCH

• Qualification Status:

  Not Qualified

• RAM (bytes):

  256

• ROM (words):

  4096

• ROM Programmability:

  FLASH

• Seated Height-Max:

  5.08 mm

• Speed:

  8 MHz

• Supply Current-Max:

  9 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  3.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  1.778 mm

• Terminal Position:

  DUAL

• Width:

  10.16 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
