ST72C104G1M6 - STMicroelectronics

Description: 8-bit MCU with single voltage Flash memory, ADC, 16-bit timers, SPI, I2C interfaces

Download ST72C104G1M6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

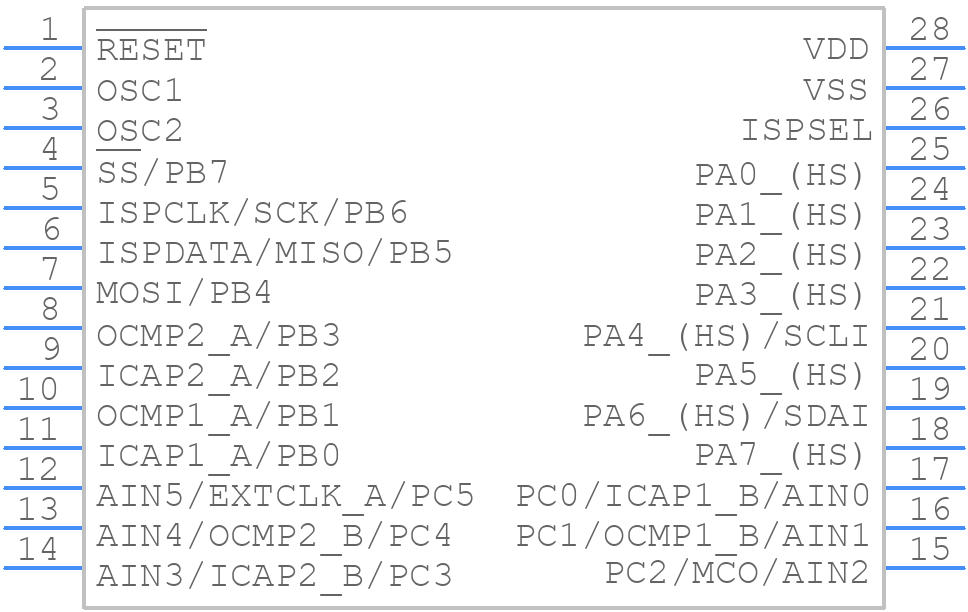

ST72C104G1M6 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST72C104G1M6 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO28
click to zoom
3D Models
ST72C104G1M6 - STMicroelectronics - 3D model - Small Outline Packages - SO28
click to zoom

ST72C104G1M6 Details

  • Manufacturer Part Number:

    ST72C104G1M6

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-28

  • Pin Count:

    28

  • HTS Code:

    8542.31.00.15

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Has ADC:

    NO

  • Additional Feature:

    ALSO OPERATES FROM 3.2 TO 5.5V SUUPLY

  • Bit Size:

    8

  • Boundary Scan:

    NO

  • CPU Family:

    ST72

  • Clock Frequency-Max:

    16 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    17.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    22

  • Number of Terminals:

    28

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    250

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    256

  • ROM (words):

    4096

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    2.65 mm

  • Speed:

    8 MHz

  • Supply Current-Max:

    9 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

ST72C104G1M6 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ST72C104G1M6 is -40°C to +85°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade at extreme temperatures.
  • The ST72C104G1M6 has an internal RC oscillator, an external clock input, and a PLL (Phase-Locked Loop) for clock generation. To configure the clock source, you need to set the CKSEL (Clock Select) bits in the Flash Configuration Register (FCR) accordingly. Refer to the datasheet for the specific bit settings and configuration options.
  • The maximum current consumption of the ST72C104G1M6 depends on the operating mode, clock frequency, and peripheral usage. According to the datasheet, the typical current consumption is around 10mA at 4MHz with all peripherals enabled. However, this value can increase up to 30mA or more in certain scenarios. It's recommended to consult the datasheet and perform power consumption analysis for your specific application.
  • The ST72C104G1M6 has a built-in watchdog timer (WDT) that can be enabled and configured using the WDT Control Register (WDTCR). To implement a watchdog timer, you need to set the WDT prescaler, timeout period, and enable the WDT. The WDT will reset the device if it doesn't receive a refresh signal within the specified timeout period.
  • Yes, the ST72C104G1M6 can operate with a 3.3V power supply. The device is specified to operate from 2.7V to 5.5V, making it compatible with 3.3V systems. However, ensure that the power supply is stable and within the recommended operating range to avoid any issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
