ST72C314J2T6 - STMicroelectronics

Description: Microcontroller, 8-Bit, FLASH, ST72 CPU, 8MHz, CMOS, PQFP44

Download ST72C314J2T6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

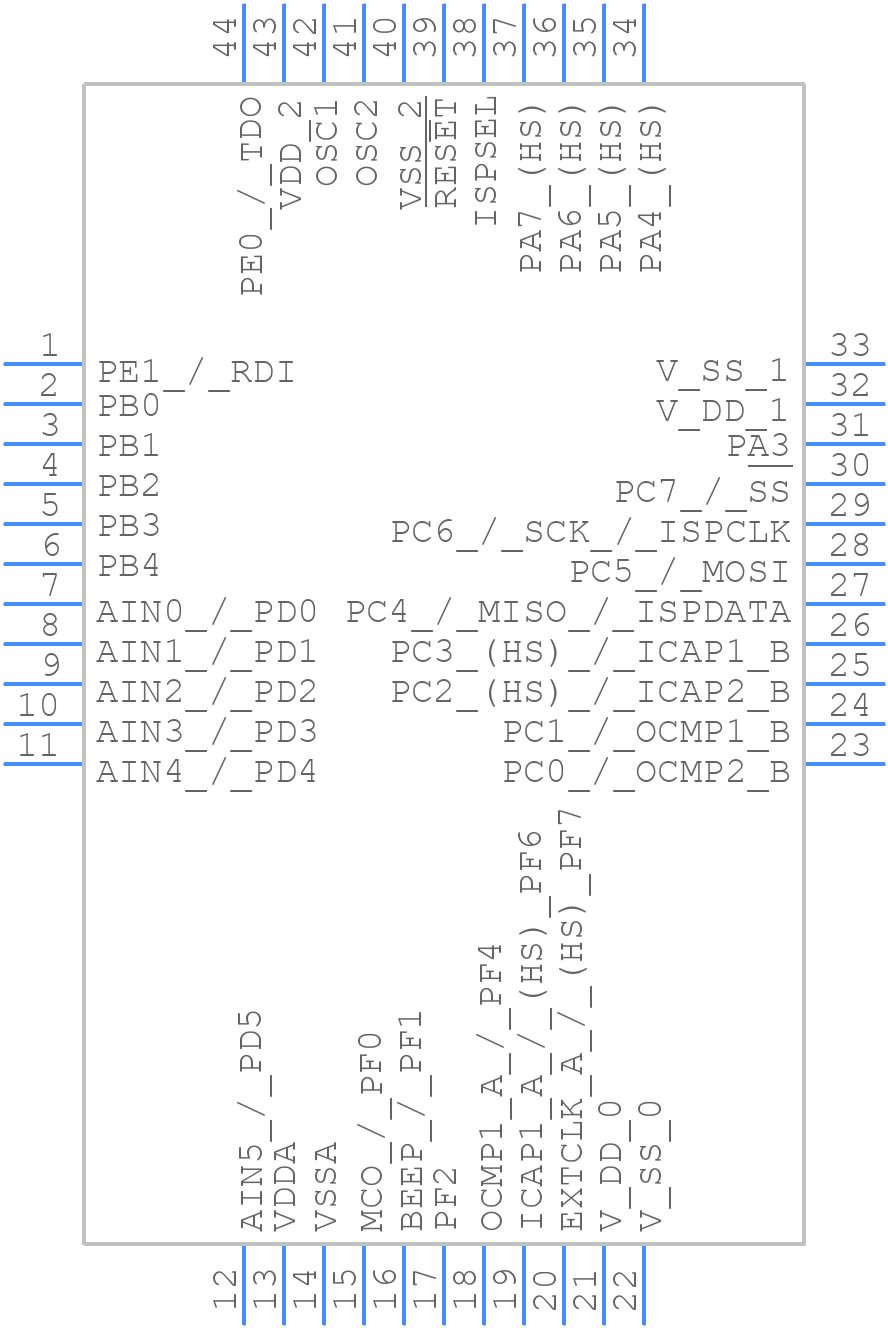

ST72C314J2T6 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST72C314J2T6 - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP44 package
click to zoom
3D Models
ST72C314J2T6 - STMicroelectronics - 3D model - Quad Flat Packages - LQFP44 package
click to zoom

ST72C314J2T6 Details

  • Manufacturer Part Number:

    ST72C314J2T6

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8542.31.00.15

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Bit Size:

    8

  • CPU Family:

    ST72

  • JESD-30 Code:

    S-PQFP-G44

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP44,.47SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    384

  • ROM (words):

    8192

  • ROM Programmability:

    FLASH

  • Speed:

    8 MHz

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

ST72C314J2T6 Frequently Asked Questions (FAQs)

  • The ST72C314J2T6 can operate from -40°C to 125°C, but the maximum junction temperature is 150°C.
  • The oscillator can be configured using the OSCXCF and OSCXCF2 registers. The oscillator frequency can be set to 4 MHz, 8 MHz, or 16 MHz, and the clock source can be selected from internal RC, external crystal, or external clock.
  • The maximum current consumption of the ST72C314J2T6 is approximately 15 mA at 5V and 16 MHz, but this can vary depending on the operating mode and peripheral usage.
  • The watchdog timer can be implemented using the WDG register. The watchdog timer can be enabled, disabled, or reset using the WDGCR register, and the timeout period can be set using the WDGT register.
  • The BOR feature resets the microcontroller when the supply voltage falls below a certain threshold (typically 2.5V). This helps prevent the microcontroller from operating erratically or unpredictably during power-on or power-down sequences.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ST72C314J2T6 Overview

Use the download button to access the ST72C314J2T6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ST72C, or try a keyword search, such as Microcontrollers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
