ST72F63BH6T1 - STMicroelectronics

Description: Low speed USB 8-bit MCU family with up to 32 KB Flash/ROM, DFU capability, 8-bit ADC, WDG, timer, SCI and I2C

Download ST72F63BH6T1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

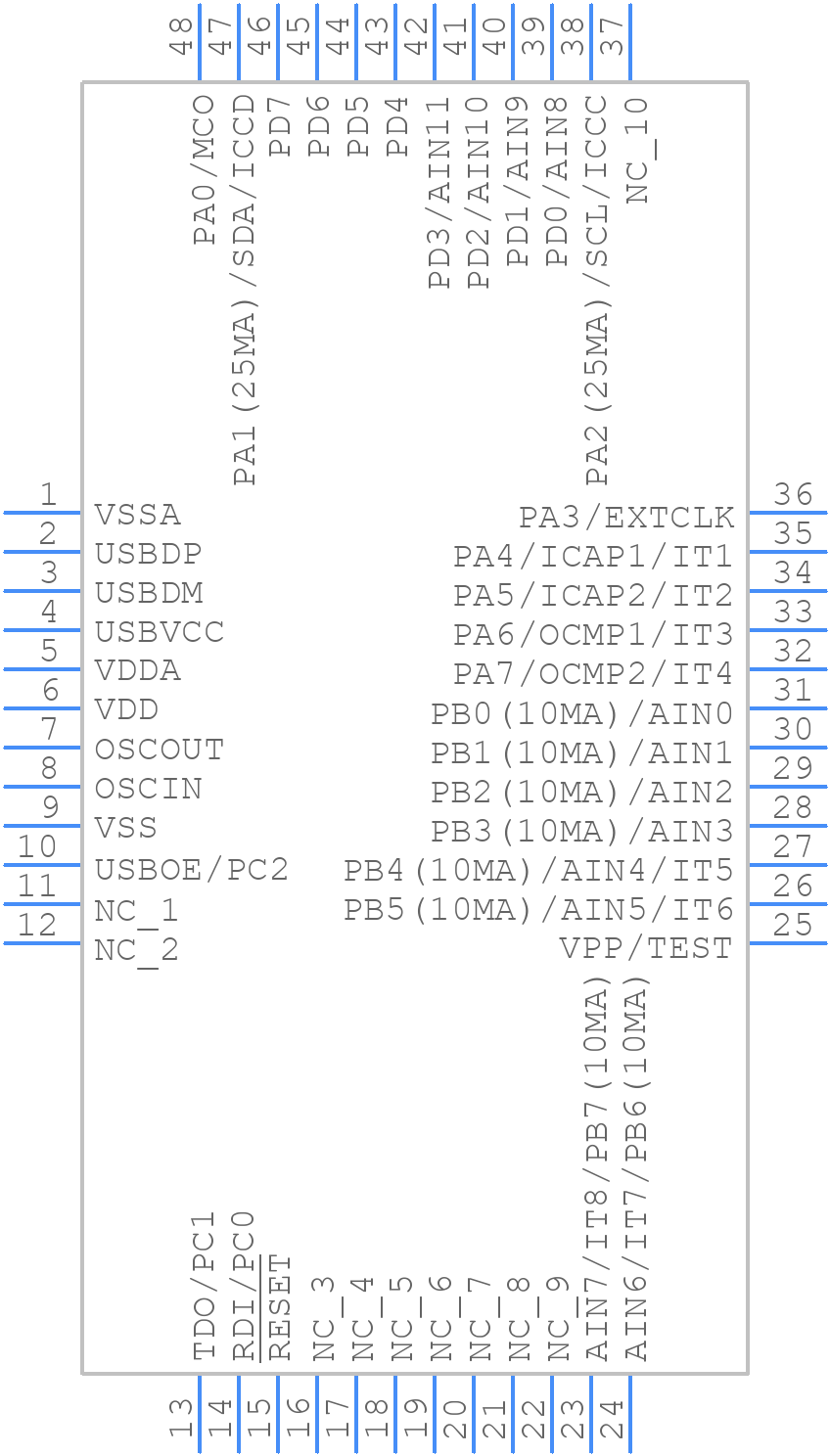

ST72F63BH6T1 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST72F63BH6T1 - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP-48_2026
click to zoom
3D Models
ST72F63BH6T1 - STMicroelectronics - 3D model - Quad Flat Packages - LQFP-48_2026
click to zoom

ST72F63BH6T1 Details

  • Manufacturer Part Number:

    ST72F63BH6T1

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFP

  • Package Description:

    7 X 7 MM, ROHS COMPLIANT, LQFP-48

  • Pin Count:

    48

  • HTS Code:

    8542.31.00.15

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    3

  • Has ADC:

    YES

  • Bit Size:

    8

  • Boundary Scan:

    YES

  • CPU Family:

    ST72

  • Clock Frequency-Max:

    24 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    27

  • Number of Terminals:

    48

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    70 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    1024

  • ROM (words):

    32768

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.6 mm

  • Speed:

    8 MHz

  • Supply Current-Max:

    13 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

ST72F63BH6T1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ST72F63BH6T1 is -40°C to +85°C, as specified in the datasheet. However, it's recommended to operate the device within the recommended temperature range of 0°C to +70°C for optimal performance and reliability.
  • The ST72F63BH6T1 has multiple clock sources, including an internal RC oscillator, an external crystal oscillator, and an external clock source. To configure the clock source, you need to set the appropriate bits in the Clock Control Register (CCR) and the Clock Security System Register (CSSR). Refer to the datasheet and the application notes for more information.
  • The maximum current consumption of the ST72F63BH6T1 depends on the operating frequency, voltage, and peripherals used. According to the datasheet, the typical current consumption is around 10mA at 16MHz and 3.3V. However, this value can increase up to 30mA or more depending on the specific application and usage.
  • The ST72F63BH6T1 has a built-in watchdog timer that can be enabled and configured using the Watchdog Timer Control Register (WTCR). You need to set the watchdog timer period, enable the watchdog timer, and implement a software reset mechanism to reset the device in case of a watchdog timer overflow. Refer to the datasheet and application notes for more information.
  • Yes, the ST72F63BH6T1 has an external memory interface that allows you to connect external memory devices, such as SRAM or Flash memory. You need to configure the external memory interface using the External Memory Control Register (EMCR) and ensure that the memory device is compatible with the microcontroller's bus timing and voltage requirements.
