ST72F63BK1M1 - STMicroelectronics

Description: Low speed USB 8-bit MCU family with up to 32 KB Flash/ROM, DFU capability, 8-bit ADC, WDG, timer, SCI and I2C

Download ST72F63BK1M1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

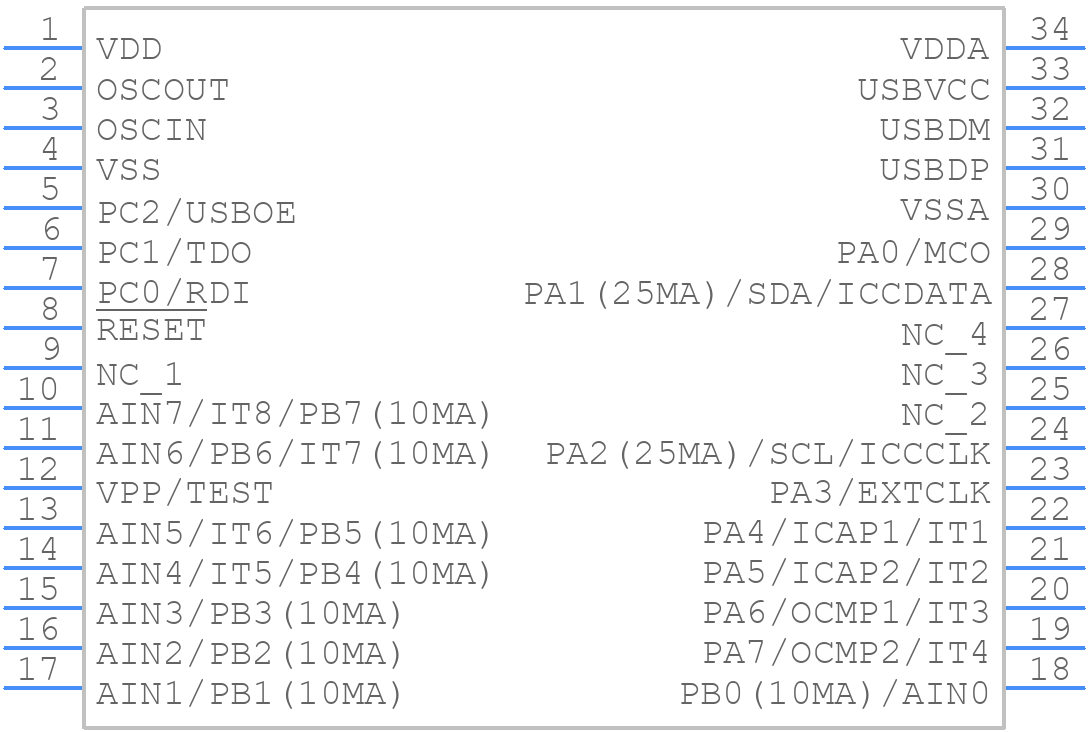

ST72F63BK1M1 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

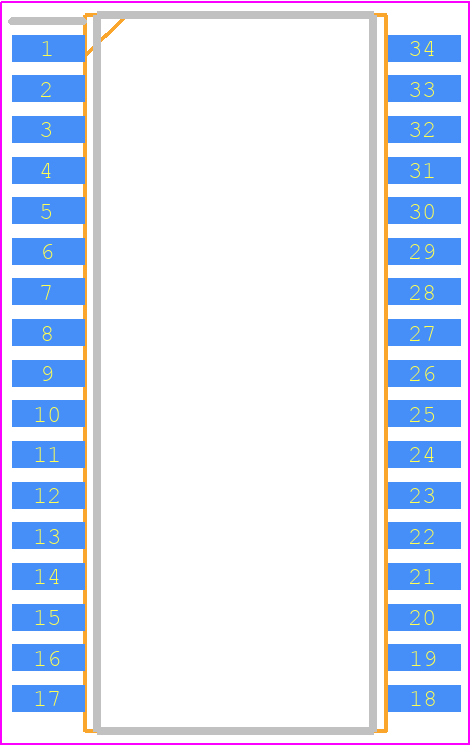

ST72F63BK1M1 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - 34-pin plastic small outline package, 300-mil width
click to zoom
3D Models
ST72F63BK1M1 - STMicroelectronics - 3D model - Small Outline Packages - 34-pin plastic small outline package, 300-mil width
click to zoom

ST72F63BK1M1 Details

  • Manufacturer Part Number:

    ST72F63BK1M1

  • Brand Name:

    STMicroelectronics

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    0.300 INCH, ROHS COMPLIANT, PLASTIC, SOP-34

  • Pin Count:

    34

  • HTS Code:

    8542.31.00.15

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Has ADC:

    YES

  • Bit Size:

    8

  • Boundary Scan:

    YES

  • CPU Family:

    ST72

  • Clock Frequency-Max:

    24 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • JESD-30 Code:

    R-PDSO-G34

  • JESD-609 Code:

    e4

  • Length:

    17.894 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    19

  • Number of Terminals:

    34

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    70 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP34,.4,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    384

  • ROM (words):

    4096

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    2.642 mm

  • Speed:

    8 MHz

  • Supply Current-Max:

    13.5 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.016 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

ST72F63BK1M1 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for ST72F63BK1M1 is 2.2V to 3.6V, as specified in the datasheet. However, it's essential to note that the device can operate at a voltage as low as 2.0V, but with reduced performance and increased power consumption.
  • The ST72F63BK1M1 has a built-in oscillator that can be configured to use an external crystal or ceramic resonator. To handle the clock configuration, you need to set the clock source, clock frequency, and clock divider using the Clock Control Register (CKCU). Refer to the datasheet and application notes for more information.
  • The maximum clock frequency supported by ST72F63BK1M1 is 16 MHz, as specified in the datasheet. However, the actual clock frequency may vary depending on the clock source, voltage, and temperature.
  • The ST72F63BK1M1 has a built-in watchdog timer that can be enabled and configured using the Watchdog Timer Control Register (WDTC). You need to set the watchdog timer period, enable the watchdog timer, and implement a software reset mechanism to handle watchdog timer timeouts.
  • The power consumption of ST72F63BK1M1 varies depending on the operating mode, voltage, and frequency. According to the datasheet, the typical power consumption is around 10 mA in active mode, 5 mA in sleep mode, and 10 μA in standby mode. However, the actual power consumption may vary depending on the application and usage.
