ST7590 - STMicroelectronics

Description: STMICROELECTRONICS - ST7590 - OFDM POWER LINE COMM SOC, 18V, QFN-48

Download ST7590 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

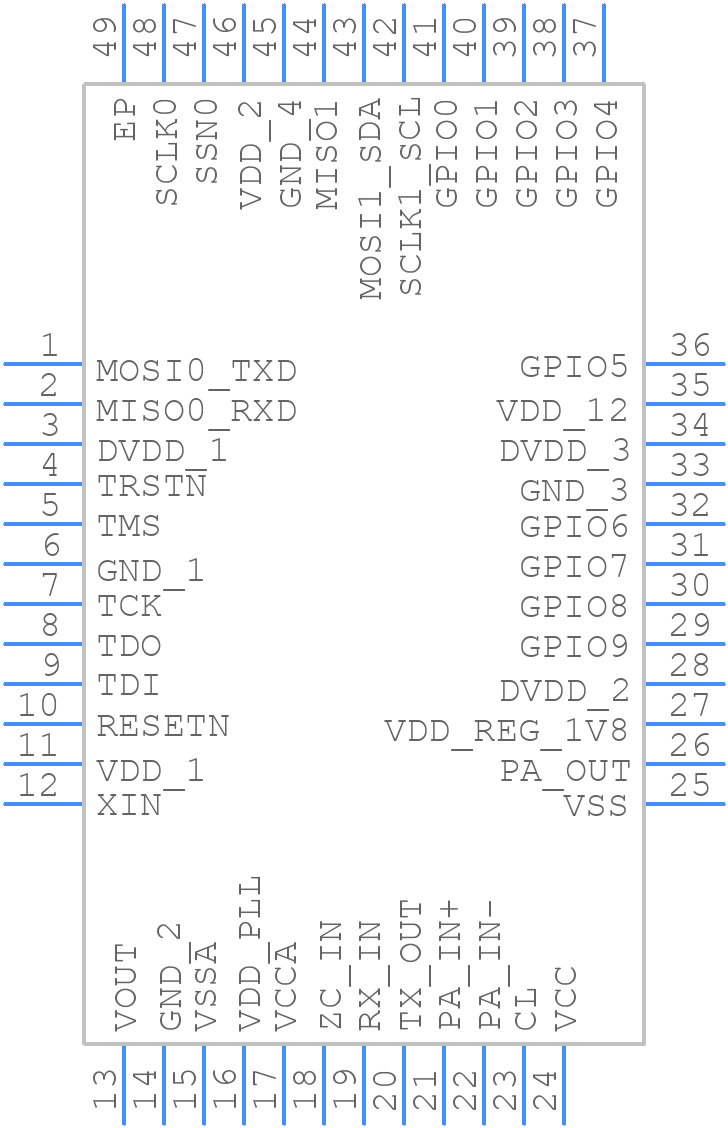

ST7590 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST7590 - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-48 (7 x 7 mm)
click to zoom
3D Models
ST7590 - STMicroelectronics - 3D model - Quad Flat No-Lead - QFN-48 (7 x 7 mm)
click to zoom

ST7590 Details

  • Manufacturer Part Number:

    ST7590

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    40

ST7590 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the ST7590 is 2.7V to 5.5V, with a typical voltage of 3.3V.
  • The ST7590 can be configured for I2C or SPI communication by setting the appropriate pins (e.g., SCL/SDA for I2C or SCK/MOSI/MISO for SPI) and configuring the device's registers accordingly.
  • The maximum frequency for the ST7590's internal oscillator is 16 MHz.
  • Yes, the ST7590 has a low-power mode that can be enabled by setting the appropriate registers, allowing the device to consume less power when not in use.
  • The ST7590 has a built-in watchdog timer that can be enabled and configured using the device's registers. The watchdog timer can be used to reset the device in case of a software fault or hang.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ST7590 Overview

Use the download button to access the ST7590 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ST759, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
