ST75MM - STMicroelectronics

Description: METERS AND MORE® compliant power line communication System on Chip

Download ST75MM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

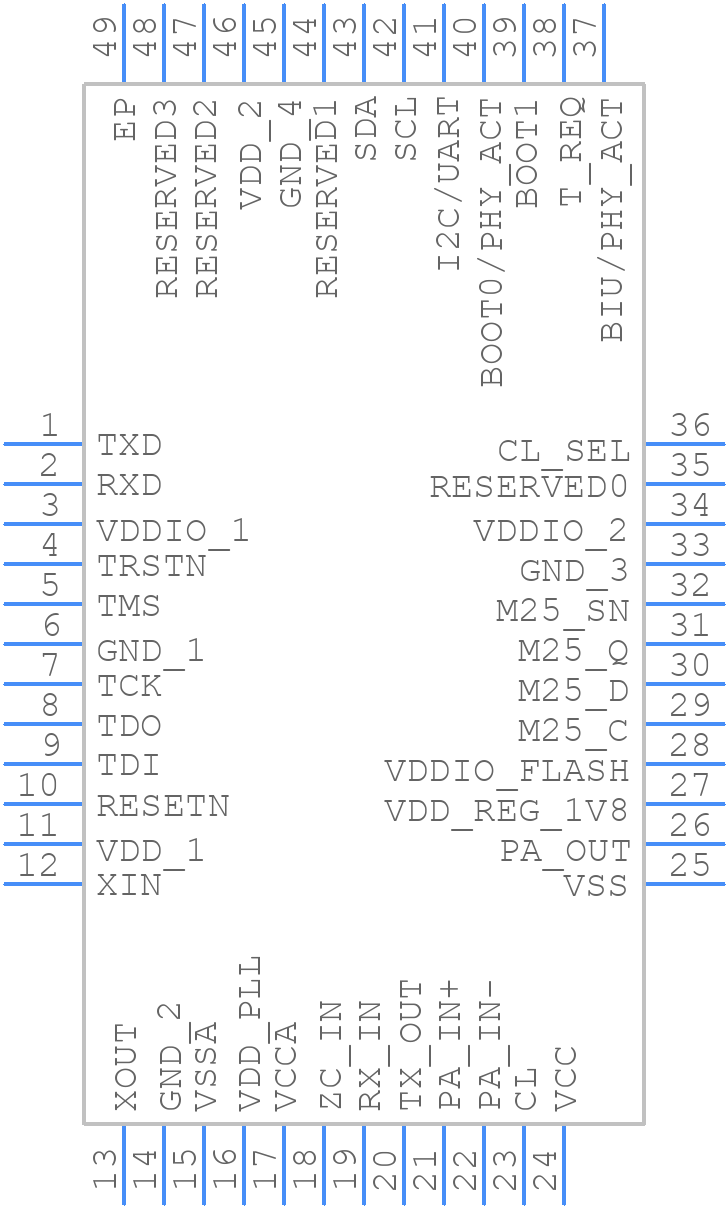

ST75MM - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST75MM - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN 48 7x7x1.0 mm_2022-1
click to zoom
3D Models
ST75MM - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFPN 48 7x7x1.0 mm_2022-1
click to zoom

ST75MM Details

  • Manufacturer Part Number:

    ST75MM

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-48

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    35 Weeks

  • Manufacturer:

    STMicroelectronics

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    30

ST75MM Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5123, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The thermal shutdown feature is enabled by default and triggers when the junction temperature exceeds 150°C. To handle this, ensure proper thermal design, use a heat sink if necessary, and implement a thermal monitoring and shutdown strategy in your system design.
  • Although the datasheet specifies a maximum VCC voltage of 5.5V, it's recommended to limit the voltage to 5V to ensure reliable operation and prevent damage to the device.
  • To configure the ST75MM for low-power mode, set the EN pin low, which reduces the quiescent current to approximately 10μA. Additionally, consider using the power-down mode by setting the PD pin low, which further reduces the current consumption.
  • A 10nF to 100nF ceramic capacitor is recommended for VCC decoupling, placed as close as possible to the VCC pin. This helps to filter out noise and ensure stable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ST75MM Overview

Use the download button to access the ST75MM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ST75M, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
