ST7FLI49MK1B6 - STMicroelectronics

Description: 8-bit MCU with single voltage Flash memory, data EEPROM, ADC, 8/12-bit timers, and I²C interface

Download ST7FLI49MK1B6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

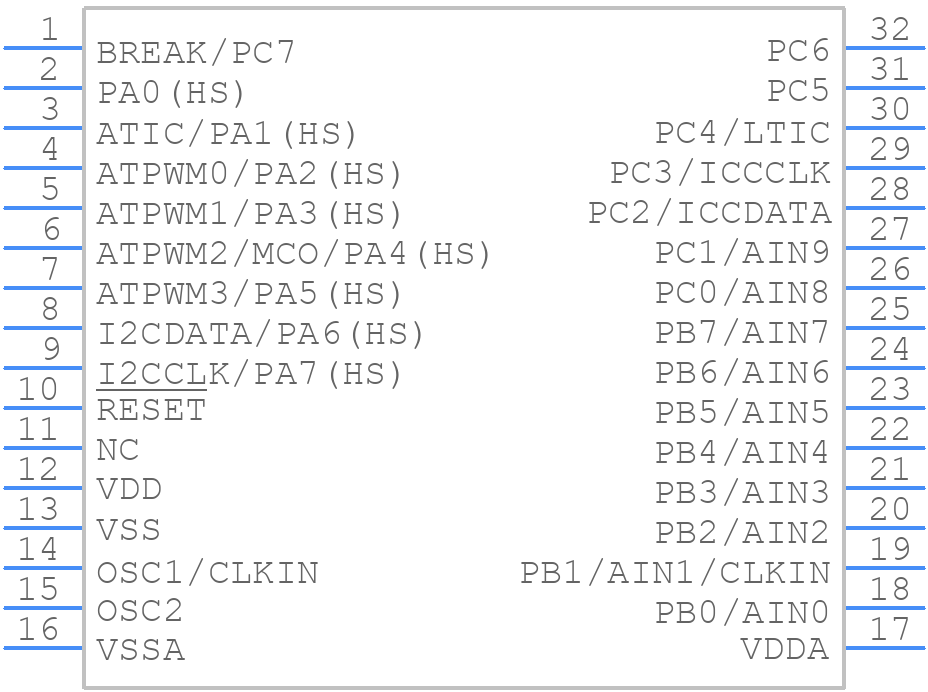

ST7FLI49MK1B6 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

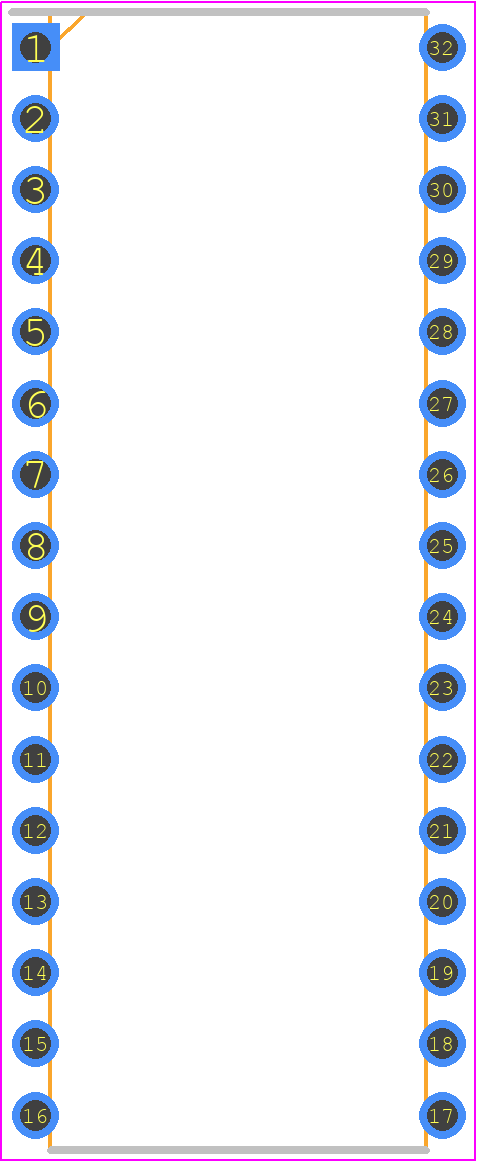

ST7FLI49MK1B6 - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 32-Pin Plastic Dual In-Line Package, Shrink 400-mil Width
click to zoom
3D Models
ST7FLI49MK1B6 - STMicroelectronics - 3D model - Dual-In-Line Packages - 32-Pin Plastic Dual In-Line Package, Shrink 400-mil Width
click to zoom

ST7FLI49MK1B6 Details

  • Manufacturer Part Number:

    ST7FLI49MK1B6

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    0.400 INCH, ROHS COMPLIANT, PLASTIC, DIP-32

  • Pin Count:

    32

  • HTS Code:

    8542.31.00.15

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    4

  • Has ADC:

    YES

  • Bit Size:

    8

  • CPU Family:

    ST72

  • Clock Frequency-Max:

    16 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    R-PDIP-T32

  • JESD-609 Code:

    e3

  • Length:

    27.94 mm

  • Number of I/O Lines:

    24

  • Number of Terminals:

    32

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SDIP

  • Package Equivalence Code:

    DIP32,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    384

  • ROM (words):

    4096

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    5.08 mm

  • Speed:

    16 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.778 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

ST7FLI49MK1B6 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2352, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The ST7FLI49MK1B6 has a limited number of flash memory programming and erase cycles. To handle this, use the STMicroelectronics-provided flash programming tools and follow the recommended programming and erase procedures outlined in the datasheet and application notes. Additionally, consider implementing wear leveling and error correction mechanisms in your firmware.
  • The ST7FLI49MK1B6 has a maximum junction temperature of 150°C. To ensure reliable operation, provide adequate heat sinking, use thermal pads or vias, and follow the recommended PCB layout guidelines. Also, consider using thermal simulation tools to analyze and optimize the thermal performance of your design.
  • STMicroelectronics provides a secure boot mechanism and firmware update protocols in the ST7FLI49MK1B6. Implement secure boot by using the built-in boot loader and following the recommended secure boot procedures outlined in the datasheet and application notes. For firmware updates, use the STMicroelectronics-provided update tools and follow the recommended update protocols.
  • To ensure EMC and EMI compliance, follow the recommended PCB layout guidelines, use shielding and filtering components, and implement EMI mitigation techniques such as spread spectrum clocking and slew rate control. Additionally, perform EMC and EMI testing and certification according to relevant industry standards.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ST7FLI49MK1B6 Overview

Use the download button to access the ST7FLI49MK1B6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ST7FL, or try a keyword search, such as Microcontrollers
