ST7FLIT19BY0M6 - STMicroelectronics

Description: 8-bit MCU with single voltage Flash memory, data EEPROM, ADC, 5 timers, SPI , SO-16 , -40°C to 85°C

Download ST7FLIT19BY0M6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

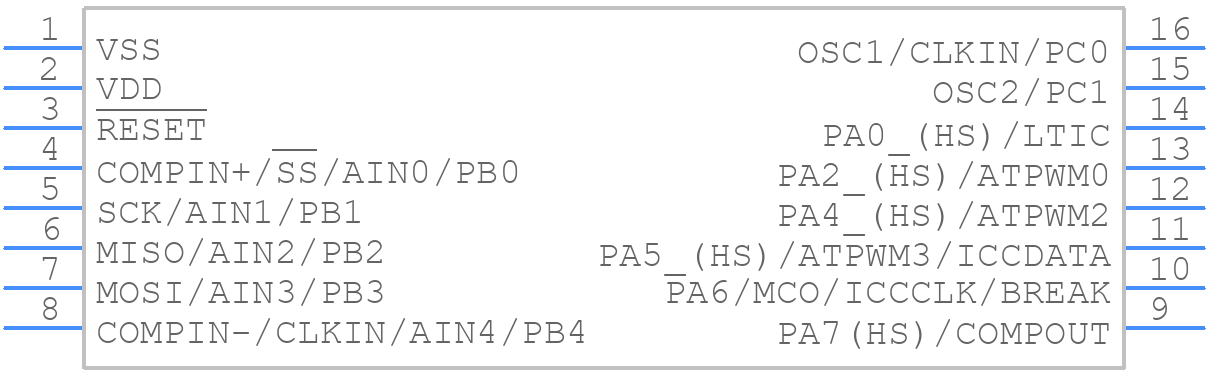

ST7FLIT19BY0M6 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST7FLIT19BY0M6 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - 16-Pin Plastic Small Outline Package, 300-mil Width
click to zoom
3D Models
ST7FLIT19BY0M6 - STMicroelectronics - 3D model - Small Outline Packages - 16-Pin Plastic Small Outline Package, 300-mil Width
click to zoom

ST7FLIT19BY0M6 Details

  • Manufacturer Part Number:

    ST7FLIT19BY0M6

  • Brand Name:

    STMicroelectronics

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    0.300 INCH, ROHS COMPLIANT, PLASTIC, SOP-16

  • Pin Count:

    16

  • HTS Code:

    8542.31.00.15

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Has ADC:

    YES

  • Additional Feature:

    ALSO OPERATES AT 2.7V SUPPLY AT 4 MHZ

  • Bit Size:

    8

  • Boundary Scan:

    NO

  • CPU Family:

    ST72

  • Clock Frequency-Max:

    16 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    17

  • Number of Terminals:

    16

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    256

  • ROM (words):

    2048

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    2.65 mm

  • Speed:

    8 MHz

  • Supply Current-Max:

    9 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

ST7FLIT19BY0M6 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2352, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The ST7FLIT19BY0M6 has a built-in wear leveling mechanism to ensure even wear across the flash memory. However, it's still recommended to implement a wear leveling algorithm in the firmware to further extend the memory's lifespan. Additionally, follow the guidelines for flash memory usage and avoid excessive write cycles to minimize wear.
  • The ST7FLIT19BY0M6 has a maximum junction temperature of 150°C. Ensure proper thermal management by providing adequate heat dissipation through a heat sink, thermal vias, or a thermally conductive PCB substrate. Also, follow the recommended operating conditions and avoid overheating to prevent device damage.
  • The ST7FLIT19BY0M6 has a built-in secure boot mechanism that can be enabled to ensure the authenticity and integrity of the firmware. Implement firmware encryption using the device's cryptographic accelerators and follow the guidelines in the STMicroelectronics' secure boot application note (AN4838) to ensure secure firmware updates and prevent unauthorized access.
  • Follow the guidelines in the STMicroelectronics' EMC application note (AN2679) to ensure the device meets the required EMC standards. Implement proper PCB layout, grounding, and shielding techniques to minimize EMI. Additionally, use the device's built-in EMI filters and follow the recommended operating conditions to reduce electromagnetic radiation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ST7FLIT19BY0M6 Overview

Use the download button to access the ST7FLIT19BY0M6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ST7FL, or try a keyword search, such as Microcontrollers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
