ST7FLIT19BY1M6 - STMicroelectronics

Description: 8-bit MCU with single voltage Flash memory, data EEPROM, ADC, 5 timers, SPI , SO-16 , -40°C to 85°C

Download ST7FLIT19BY1M6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

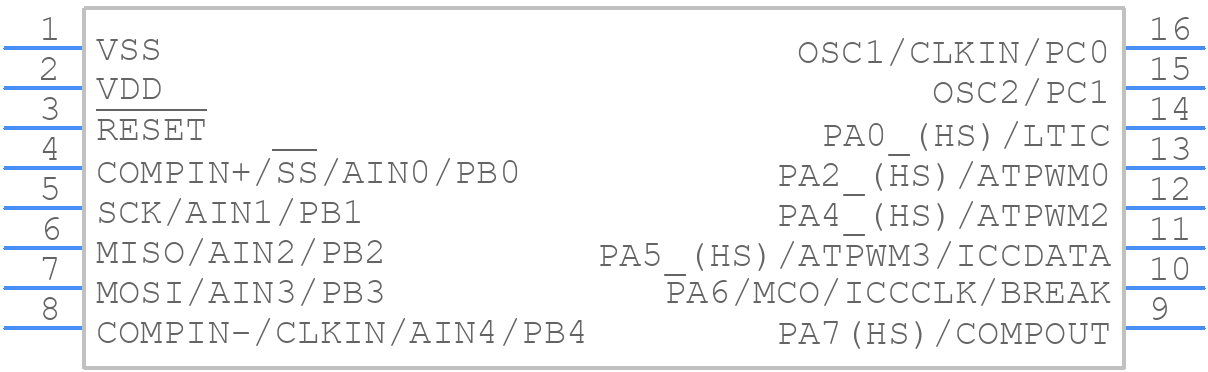

ST7FLIT19BY1M6 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST7FLIT19BY1M6 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - 16-Pin Plastic Small Outline Package, 300-mil Width
click to zoom
3D Models
ST7FLIT19BY1M6 - STMicroelectronics - 3D model - Small Outline Packages - 16-Pin Plastic Small Outline Package, 300-mil Width
click to zoom

ST7FLIT19BY1M6 Details

  • Manufacturer Part Number:

    ST7FLIT19BY1M6

  • Brand Name:

    STMicroelectronics

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    0.300 INCH, ROHS COMPLIANT, PLASTIC, SOP-16

  • Pin Count:

    16

  • HTS Code:

    8542.31.00.15

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Has ADC:

    YES

  • Additional Feature:

    ALSO OPERATES AT 2.7V SUPPLY AT 4 MHZ

  • Bit Size:

    8

  • Boundary Scan:

    NO

  • CPU Family:

    ST72

  • Clock Frequency-Max:

    16 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    17

  • Number of Terminals:

    16

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    256

  • ROM (words):

    4096

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    2.65 mm

  • Speed:

    8 MHz

  • Supply Current-Max:

    9 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER
