ST7FLITEU09B6 - STMicroelectronics

Description: 8-bit MCU with single voltage Flash memory, ADC, timers, 8-Pin Plastic Dual In-Line Package

Download ST7FLITEU09B6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

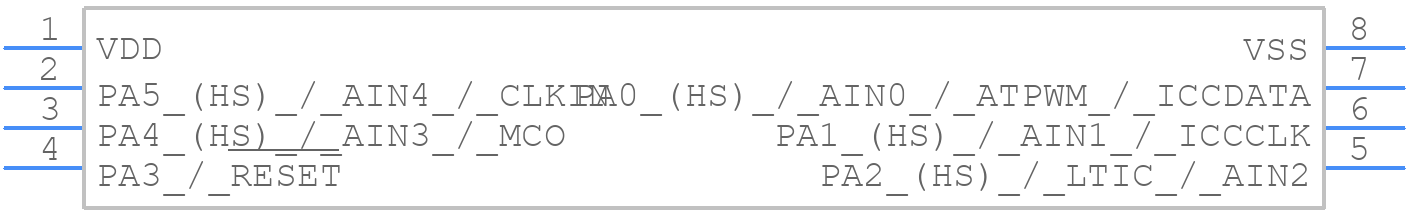

Symbol
ST7FLITEU09B6 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST7FLITEU09B6 - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8-Pin Plastic Dual In-Line Package, 300-mil Width
click to zoom
3D Models
ST7FLITEU09B6 - STMicroelectronics - 3D model - Dual-In-Line Packages - 8-Pin Plastic Dual In-Line Package, 300-mil Width
click to zoom

ST7FLITEU09B6 Details

  • Manufacturer Part Number:

    ST7FLITEU09B6

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    0.300 INCH, PLASTIC, DIP-8

  • Pin Count:

    8

  • HTS Code:

    8542.31.00.15

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Has ADC:

    YES

  • Bit Size:

    8

  • CPU Family:

    ST72

  • Clock Frequency-Max:

    8 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.27 mm

  • Number of I/O Lines:

    6

  • Number of Terminals:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    128

  • ROM (words):

    2048

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    5.33 mm

  • Speed:

    8 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

ST7FLITEU09B6 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for ST7FLITEU09B6 is -40°C to 85°C, as specified in the datasheet. However, it's essential to note that the device can tolerate a wider temperature range during storage, typically from -50°C to 150°C.
  • To configure the ST7FLITEU09B6 for low-power mode, you need to set the PMM (Power Management Mode) bits in the Flash Control Register (FCR). This will allow the device to enter a low-power state, reducing power consumption. Refer to the datasheet for specific register settings and programming guidelines.
  • The maximum clock frequency supported by ST7FLITEU09B6 is 16 MHz. However, the device can operate at lower frequencies, and the clock frequency can be adjusted using the Clock Control Register (CCR).
  • To program the ST7FLITEU09B6 using an external programmer, you'll need to connect the programmer to the device's ISP (In-System Programming) interface. Ensure the programmer is compatible with the ST7FLITEU09B6 and follow the programmer's documentation for specific programming instructions.
  • The BOOT pin on ST7FLITEU09B6 is used to select the boot mode. When the BOOT pin is tied high, the device boots from the internal Flash memory. When tied low, the device boots from an external memory device, such as an EEPROM or serial Flash memory.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ST7FLITEU09B6 Overview

Use the download button to access the ST7FLITEU09B6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ST7FL, or try a keyword search, such as Microcontrollers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
