ST7FMC2S6T3 - STMicroelectronics

Description: 8-bit MCU with nested interrupts, Flash, 10-bit ADC, brushless motor control, five timers, SPI, LINSCI™

Download ST7FMC2S6T3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

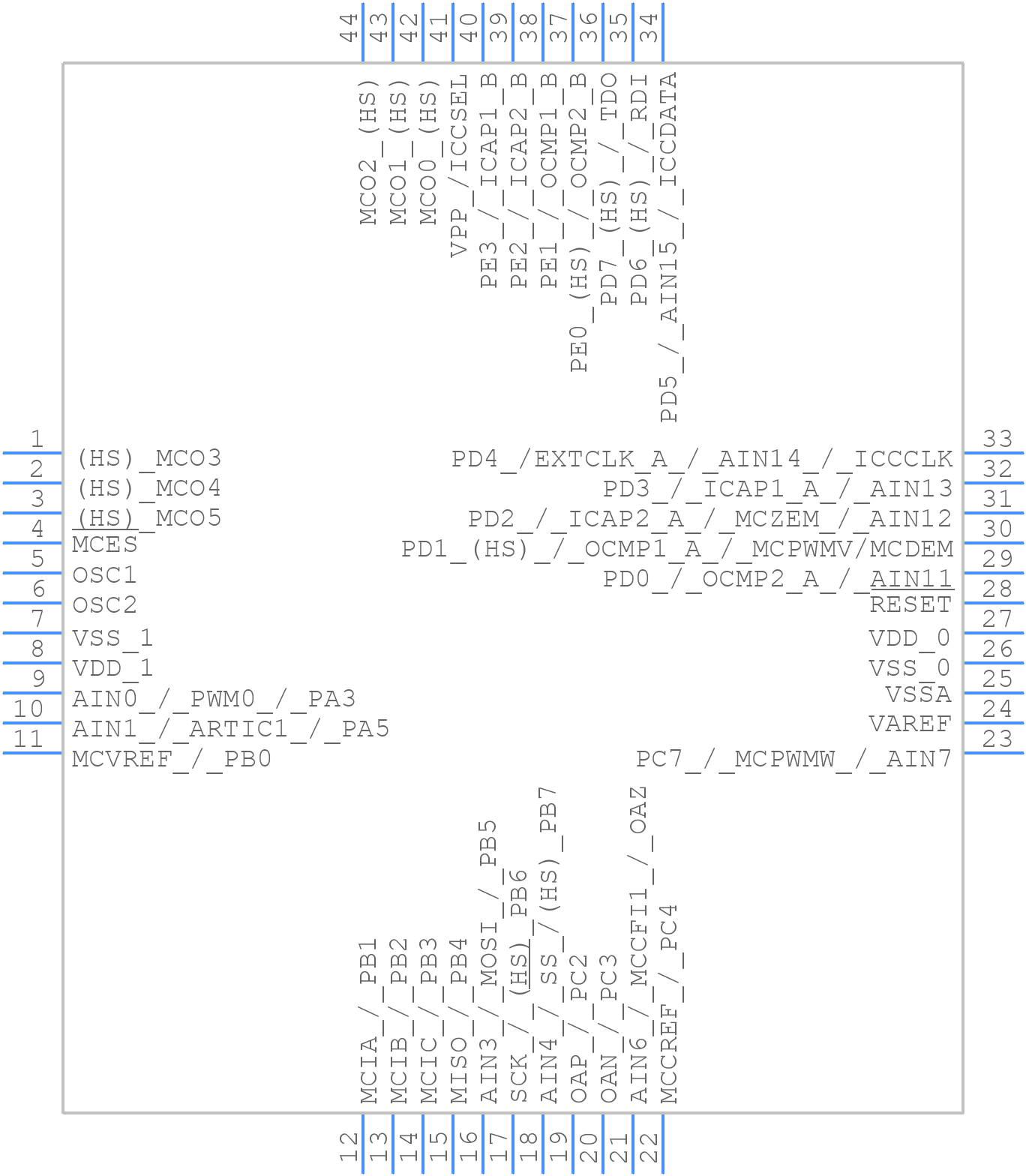

ST7FMC2S6T3 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST7FMC2S6T3 - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - 44-Pin Low Profile Quad Flat Package44-Pin Low Profile Quad Flat Package
click to zoom
3D Models
ST7FMC2S6T3 - STMicroelectronics - 3D model - Quad Flat Packages - 44-Pin Low Profile Quad Flat Package44-Pin Low Profile Quad Flat Package
click to zoom

ST7FMC2S6T3 Details

  • Manufacturer Part Number:

    ST7FMC2S6T3

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    10 X 10 MM, LQFP-44

  • Pin Count:

    44

  • HTS Code:

    8542.31.00.15

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Has ADC:

    YES

  • Bit Size:

    8

  • CPU Family:

    ST72

  • Clock Frequency-Max:

    16 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    S-PQFP-G44

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    26

  • Number of Terminals:

    44

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP44,.47SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    1024

  • ROM (words):

    32768

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.6 mm

  • Speed:

    8 MHz

  • Supply Current-Max:

    18 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3.8 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

ST7FMC2S6T3 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for ST7FMC2S6T3 is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device can tolerate a wider temperature range during storage, but operating outside the recommended range may affect its performance and reliability.
  • The ST7FMC2S6T3 has a flash memory that can be programmed and erased using the ISP (In-System Programming) interface. You can use STMicroelectronics' software tools, such as the ST7 Flash Loader, to program and erase the flash memory. It's essential to follow the recommended programming and erasing procedures to avoid damaging the device.
  • The ST7FMC2S6T3 can operate at a maximum clock frequency of 16 MHz, as specified in the datasheet. However, the actual clock frequency may vary depending on the specific application and the clock source used.
  • The ST7FMC2S6T3 has a built-in watchdog timer that can be enabled and configured using the WDR (Watchdog Register) and WDTCR (Watchdog Timer Control Register). You can set the watchdog timer period and enable it to reset the device in case of a software fault or hang-up.
  • The power consumption of ST7FMC2S6T3 varies depending on the operating mode. In active mode, the typical current consumption is around 10 mA at 16 MHz. In idle mode, the current consumption is around 2 mA, and in standby mode, it's around 10 μA. You can refer to the datasheet for more detailed information on power consumption in different operating modes.
