STMicroelectronics recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane to reduce thermal resistance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Additionally, consider using thermal management techniques, such as heat sinks or fans, to keep the device temperature within the recommended range.
The 'HC' in the part number indicates that the device is a high-current version of the ST8034. This means it can handle higher current levels than the standard version, making it suitable for applications that require more power. However, this also means the device may have higher power dissipation and thermal requirements.
Yes, the ST8034HCQR can be used in switching regulator applications. Key considerations include ensuring the device is operated within its recommended frequency range, selecting suitable external components (e.g., inductors, capacitors), and implementing proper PCB layout and thermal management to minimize electromagnetic interference (EMI) and thermal issues.
To troubleshoot issues with the ST8034HCQR, start by reviewing the device's operating conditions, including voltage, current, and temperature. Check for proper PCB layout, thermal management, and component selection. Use oscilloscopes or logic analyzers to monitor the device's behavior and identify potential issues. Consult STMicroelectronics' application notes and technical support resources for guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ST8034HCQR Overview

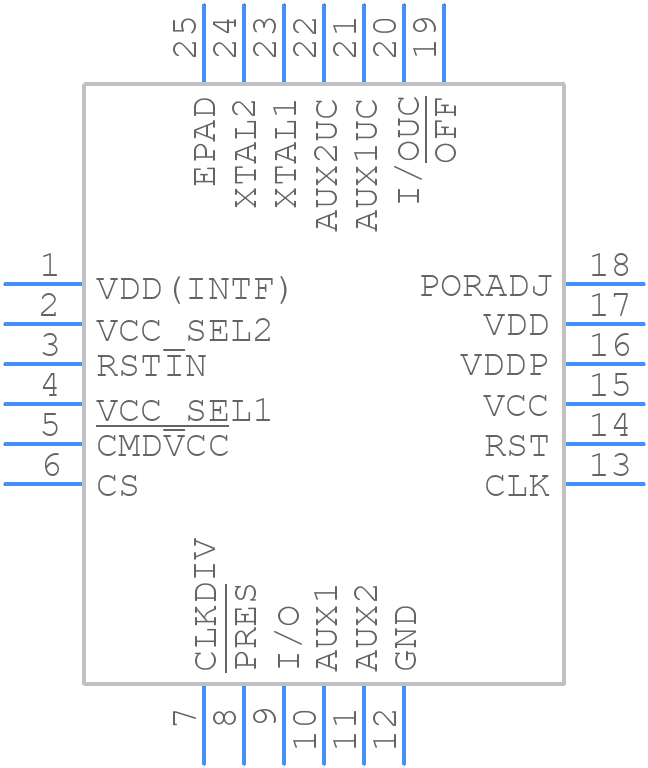

Use the download button to access the ST8034HCQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ST803,
or try a keyword search, such as Other Interface ICs
