ST8034PQR - STMicroelectronics

Description: STMICROELECTRONICS - ST8034PQR - SMART-CARD INTERFACE, 5.5V, QFN-16

Download ST8034PQR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

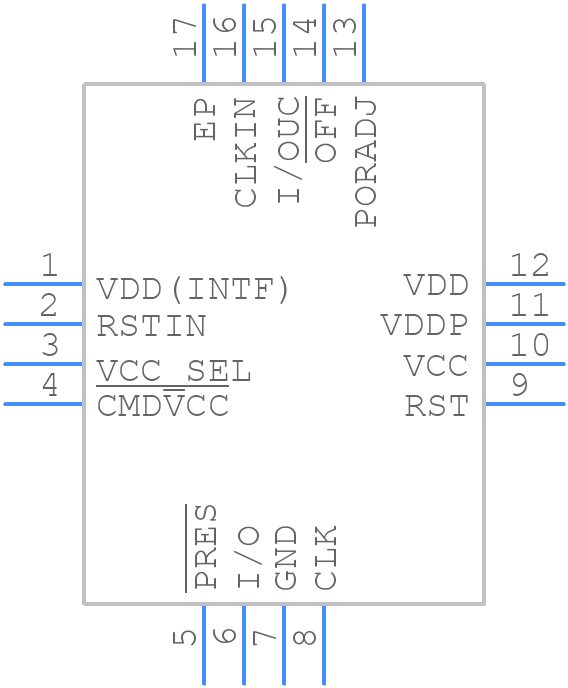

ST8034PQR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST8034PQR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ST8034PQR-
click to zoom
3D Models
ST8034PQR - STMicroelectronics - 3D model - Quad Flat No-Lead - ST8034PQR-
click to zoom

ST8034PQR Details

  • Manufacturer Part Number:

    ST8034PQR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    2.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    2.9 mm

ST8034PQR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the package for airflow and heat dissipation.
  • Implement a thermal management strategy, such as heat sinks, thermal interfaces, or fans. Ensure the device is operated within the specified temperature range (-40°C to 125°C).
  • Use 100nF to 1uF ceramic capacitors, placed as close as possible to the device's power pins. Ensure the capacitors are rated for the operating voltage and have a low ESR.
  • Implement ESD protection circuits, such as TVS diodes or ESD arrays, on the input/output lines. Ensure the protection devices are rated for the operating voltage and have a response time faster than the device's input rise time.
  • The internal voltage regulator is enabled by default. For optimal performance, set the VREG_EN pin high and ensure the input voltage is within the specified range (3.3V to 5.5V).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ST8034PQR Overview

Use the download button to access the ST8034PQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ST803, or try a keyword search, such as Other Interface ICs

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
