ST80X-24S(30) - Hirose

Description: Connector Header Surface Mount 24 position 0.039" (1.00mm)

Download ST80X-24S(30) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ST80X-24S(30) - Hirose - PCB symbol
click to zoom
PCB Footprints

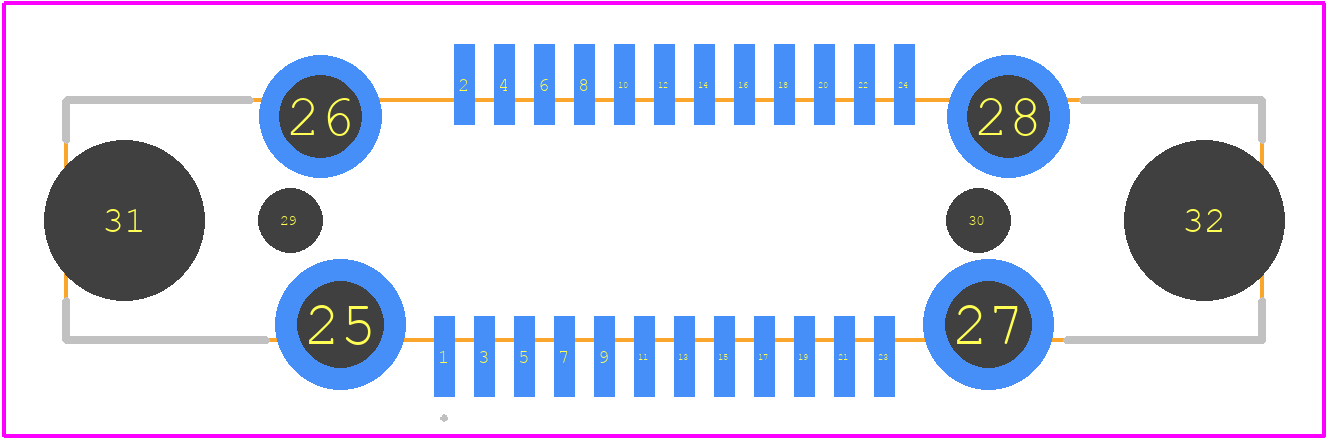

ST80X-24S(30) - Hirose PCB footprint - Other - Other - ST80X-24S(30)-2
click to zoom
3D Models
ST80X-24S(30) - Hirose - 3D model - Other - ST80X-24S(30)-2
click to zoom

ST80X-24S(30) Details

  • Manufacturer Part Number:

    ST80X-24S(30)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Termination:

    Gold (Au)

  • JESD-609 Code:

    e4

ST80X-24S(30) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m (0.37 lbf·in to 1.06 lbf·in).
  • Yes, the ST80X-24S(30) is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10G acceleration.
  • Yes, the ST80X-24S(30) has a rating of IP67, which means it is protected against dust and water immersion up to 1 meter for 30 minutes.
  • The operating temperature range for the ST80X-24S(30) is -40°C to 105°C (-40°F to 221°F).
  • The ST80X-24S(30) has a current rating of 3A per contact, making it suitable for moderate-current applications. However, it's not recommended for high-current applications above 5A.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ST80X-24S(30) Overview

Use the download button to access the ST80X-24S(30) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ST80X, or try a keyword search, such as Telecom and Datacom Connectors
