ST92F150CR9TB - STMicroelectronics

Description: 8/16-bit single voltage Flash MCU family with RAM, E3 TM(emulated EEPROM), CAN 2.0B and J1850 BLPD 64 pins LQFP

Download ST92F150CR9TB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ST92F150CR9TB - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

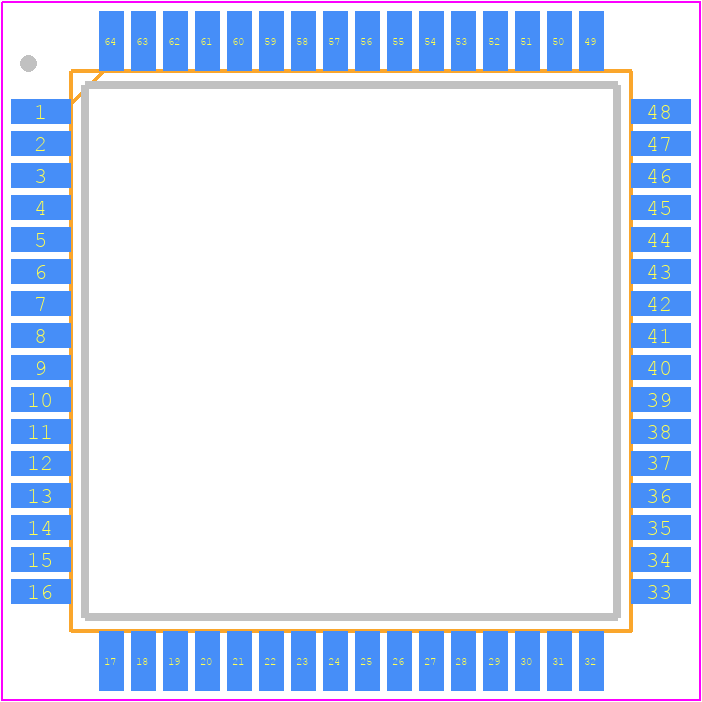

ST92F150CR9TB - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - 64-Pin Low Profile Quad Flat Package (14x14)
click to zoom
3D Models
ST92F150CR9TB - STMicroelectronics - 3D model - Quad Flat Packages - 64-Pin Low Profile Quad Flat Package (14x14)
click to zoom

ST92F150CR9TB Details

  • Manufacturer Part Number:

    ST92F150CR9TB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    14 X 14 MM, ROHS COMPLIANT, LQFP-64

  • Pin Count:

    64

  • HTS Code:

    8542.31.00.20

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Has ADC:

    YES

  • Address Bus Width:

    22

  • Bit Size:

    16

  • Boundary Scan:

    YES

  • CPU Family:

    ST9

  • Clock Frequency-Max:

    5 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • External Data Bus Width:

    8

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e1

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    77

  • Number of Terminals:

    64

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP64,.66SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    2048

  • ROM (words):

    65536

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.6 mm

  • Speed:

    24 MHz

  • Supply Current-Max:

    60 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    HCMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

ST92F150CR9TB Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ST92F150CR9TB is -40°C to 125°C, as specified in the datasheet. However, it's recommended to operate within -20°C to 85°C for optimal performance and reliability.
  • The ST92F150CR9TB has multiple clock sources, including an internal RC oscillator, external crystal oscillator, and PLL. To configure the clock source, refer to the clock control register (CKCU) and follow the instructions in the datasheet. You can also use the STMicroelectronics' Clock Configurator tool to simplify the process.
  • The maximum current consumption of the ST92F150CR9TB varies depending on the operating mode and frequency. According to the datasheet, the maximum current consumption is around 350 mA at 32 MHz with all peripherals enabled. However, this value can be reduced by optimizing the power consumption through techniques like clock gating and peripheral shutdown.
  • The ST92F150CR9TB has several low-power modes, including Sleep, Stop, and Standby. To implement these modes, use the Power Management Controller (PMC) and follow the instructions in the datasheet. You can also use the STMicroelectronics' Low Power Mode Calculator tool to estimate power consumption and optimize your design.
  • For optimal performance and reliability, follow the recommended PCB layout and design considerations outlined in the datasheet and application notes. Key considerations include decoupling capacitors, clock signal routing, and power supply filtering. Additionally, use a 4-layer PCB with a solid ground plane and follow good signal integrity practices.
