STA333BW13TR - STMicroelectronics

Description: 2.1 channel 40 W high-efficiency digital audio system Sound Terminal®

Download STA333BW13TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

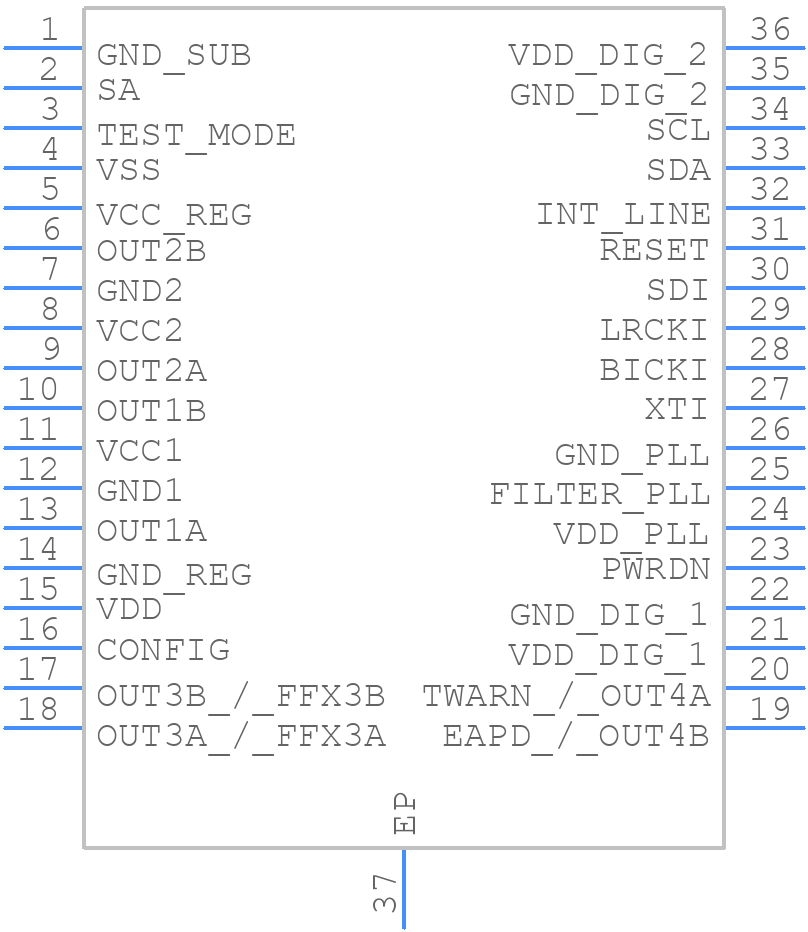

Symbol
STA333BW13TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STA333BW13TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - STA333BW13TR
click to zoom
3D Models
STA333BW13TR - STMicroelectronics - 3D model - Small Outline Packages - STA333BW13TR
click to zoom

STA333BW13TR Details

  • Manufacturer Part Number:

    STA333BW13TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-36

  • Pin Count:

    36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    STMicroelectronics

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G36

  • Length:

    10.3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP36,.4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.47 mm

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

STA333BW13TR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2863, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The STA333BW13TR is a highly configurable device, and the configuration depends on the specific audio application. STMicroelectronics provides a software development kit (SDK) and a graphical user interface (GUI) tool that allows engineers to configure the device for their specific application. The SDK and GUI tool can be downloaded from the STMicroelectronics website.
  • The STA333BW13TR is a 3.3W audio power amplifier, and it can handle a maximum power input of 3.3W per channel. However, the actual power handling capability depends on the supply voltage, load impedance, and other factors. Engineers should consult the datasheet and application notes for more information on power handling and thermal management.
  • Yes, the STA333BW13TR is compatible with digital audio interfaces such as I2S and SPDIF. It has a built-in digital-to-analog converter (DAC) that can accept digital audio signals from these interfaces and convert them to analog audio signals.
  • To ensure EMC with the STA333BW13TR, engineers should follow the guidelines provided in the application note AN2863, which includes recommendations for PCB layout, component selection, and shielding. Additionally, engineers should ensure that the device is properly decoupled and filtered to minimize electromagnetic radiation.
