STA333IS - STMicroelectronics

Description: Audio Amplifiers Sound Terminal 2-channel high-efficiency digital audio system

Download STA333IS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

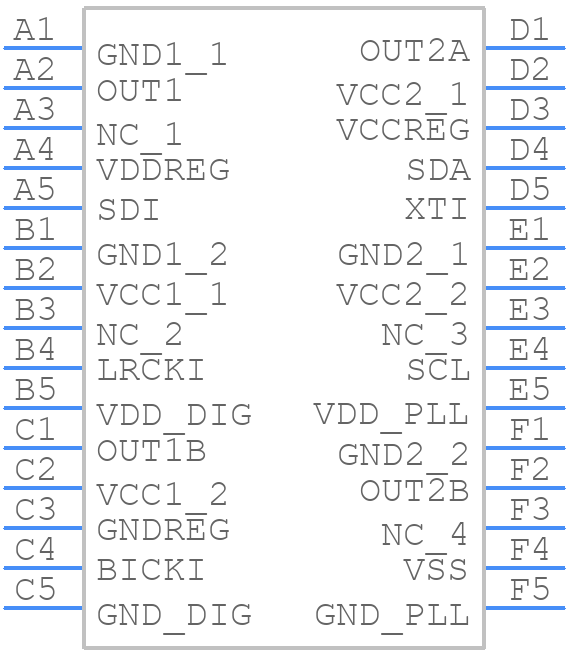

Symbol
STA333IS - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STA333IS - STMicroelectronics PCB footprint - BGA - BGA - STA333IS
click to zoom
3D Models
STA333IS - STMicroelectronics - 3D model - BGA - STA333IS
click to zoom

STA333IS Details

  • Manufacturer Part Number:

    STA333IS

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Italy

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Consumer IC Type:

    VOLUME CONTROL CIRCUIT

  • JESD-30 Code:

    R-PBGA-B30

  • JESD-609 Code:

    e1

  • Number of Terminals:

    30

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA30,5X6,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    50 mA

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

STA333IS Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the STA333IS involves keeping the analog and digital grounds separate, using a star-ground configuration, and minimizing the length of the traces to reduce noise and electromagnetic interference (EMI).
  • To optimize the STA333IS for low noise and distortion, use a low-noise voltage regulator, decouple the power supply with capacitors, and use a high-quality audio capacitor in the output filter. Additionally, ensure the PCB layout is optimized for minimal noise and EMI.
  • The maximum power dissipation of the STA333IS is 2.5W, and it is recommended to use a heat sink to ensure reliable operation. The thermal resistance (Rth) of the package is 35°C/W, and the junction temperature (Tj) should not exceed 150°C.
  • The STA333IS can be configured for different audio applications by adjusting the gain settings, input impedance, and output filter components. For example, for a line-out application, a gain of 0dB to 6dB is recommended, while for a headphone application, a gain of 12dB to 18dB is recommended.
  • The STA333IS has human body model (HBM) ESD protection of ±2kV and machine model (MM) ESD protection of ±200V. It also has latch-up immunity of 100mA per JEDEC standard JESD78.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STA333IS Overview

Use the download button to access the STA333IS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STA33, or try a keyword search, such as Audio Control ICs
