STA333ML - STMicroelectronics

Description: 2-channel microless high-efficiency digital audio system Sound Terminal®

Download STA333ML Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

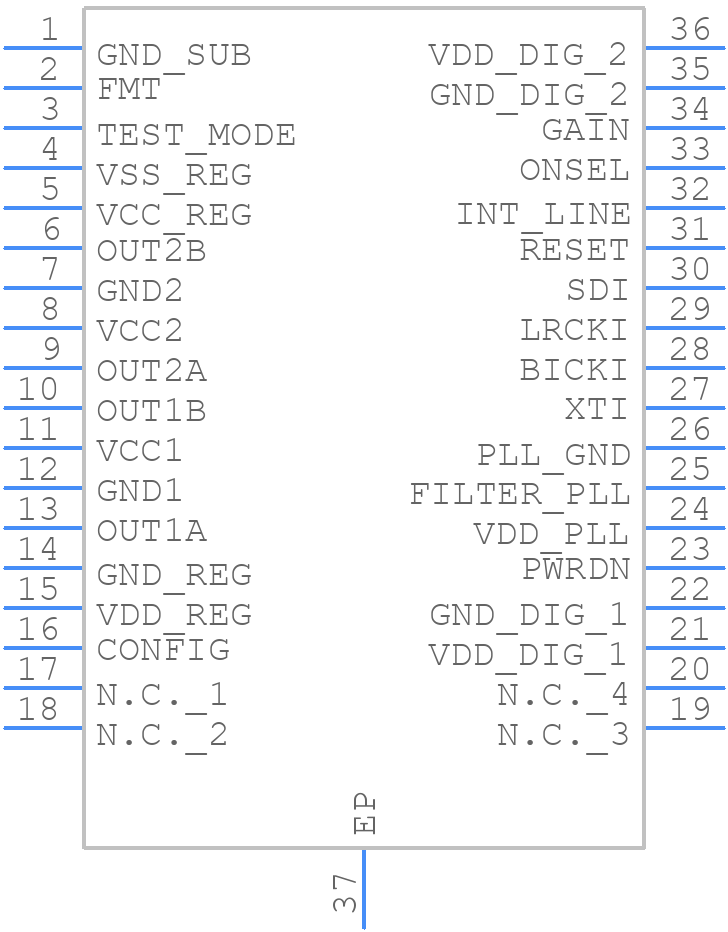

STA333ML - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STA333ML - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-36 slug down outline drawing
click to zoom
3D Models
STA333ML - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-36 slug down outline drawing
click to zoom

STA333ML Details

  • Manufacturer Part Number:

    STA333ML

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, SSOP-36

  • Pin Count:

    36

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G36

  • Length:

    10.3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP36,.4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.47 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

STA333ML Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended layout and routing guide in their application note AN2972, which includes guidelines for PCB design, component placement, and routing to ensure optimal performance and minimize noise.
  • To optimize the STA333ML for low power consumption, ensure that the device is operated at the lowest possible clock frequency, use the power-down mode when not in use, and minimize the number of active circuits. Additionally, consider using a low-dropout regulator (LDO) to reduce power consumption.
  • The maximum allowed voltage on the analog input pins of the STA333ML is VDD + 0.3V, where VDD is the supply voltage. Exceeding this voltage may damage the device.
  • To troubleshoot issues with the STA333ML's I2C interface, check the I2C bus voltage levels, ensure that the clock frequency is within the specified range, and verify that the slave address is correctly set. Additionally, use a logic analyzer or oscilloscope to monitor the I2C bus signals and identify any errors or anomalies.
  • Yes, the STA333ML can be used in a multi-master I2C bus configuration, but it requires careful consideration of the bus arbitration and collision detection mechanisms to ensure reliable operation.
