STA333ML13TR - STMicroelectronics

Description: 2-channel microless high-efficiency digital audio system Sound Terminal®

Download STA333ML13TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

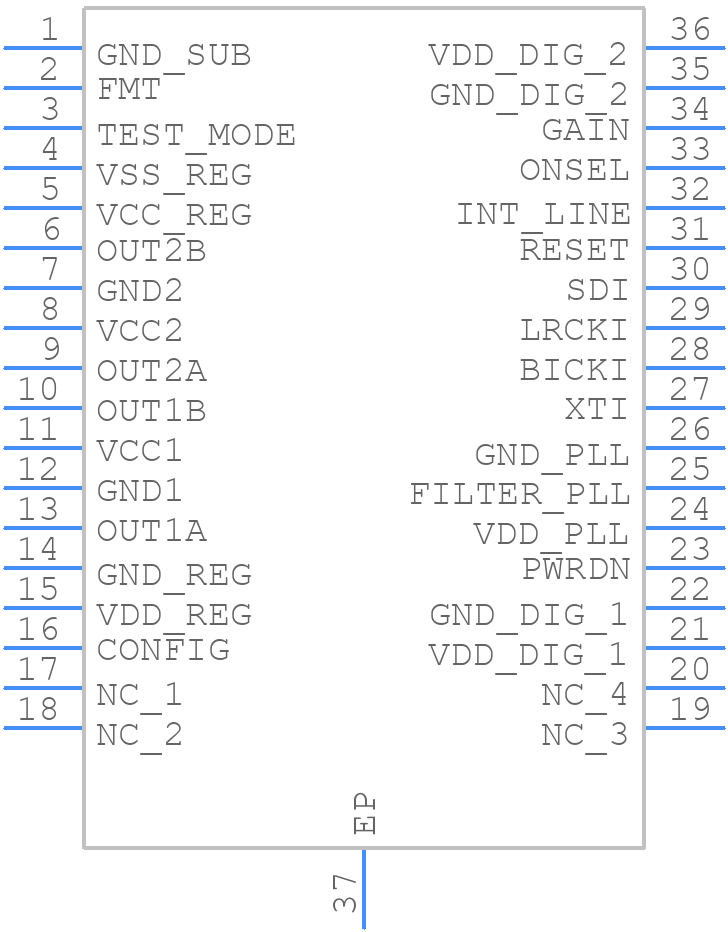

STA333ML13TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STA333ML13TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - STA333ML13TR
click to zoom
3D Models
STA333ML13TR - STMicroelectronics - 3D model - Small Outline Packages - STA333ML13TR
click to zoom

STA333ML13TR Details

  • Manufacturer Part Number:

    STA333ML13TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-36

  • Pin Count:

    36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    STMicroelectronics

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G36

  • Length:

    10.3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP36,.4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.47 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

STA333ML13TR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the STA333ML13TR involves placing the device near the audio jacks, using a ground plane to reduce noise, and keeping the analog and digital grounds separate. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To optimize the STA333ML13TR for low power consumption, use the device's power-down modes, reduce the clock frequency, and minimize the voltage supply. Additionally, use a low-dropout regulator to reduce power consumption and noise.
  • The STA333ML13TR has a thermal pad that must be connected to a solid ground plane to dissipate heat. Ensure good thermal conductivity between the device and the PCB, and avoid blocking airflow around the device.
  • To troubleshoot audio noise issues, check the PCB layout for noise coupling, ensure proper grounding and shielding, and verify that the device is properly powered. Also, check for electromagnetic interference (EMI) and radio-frequency interference (RFI) sources.
  • The STA333ML13TR has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use ESD-protective packaging, wrist straps, and mats to prevent damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STA333ML13TR Overview

Use the download button to access the STA333ML13TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STA33, or try a keyword search, such as Audio Control ICs

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
