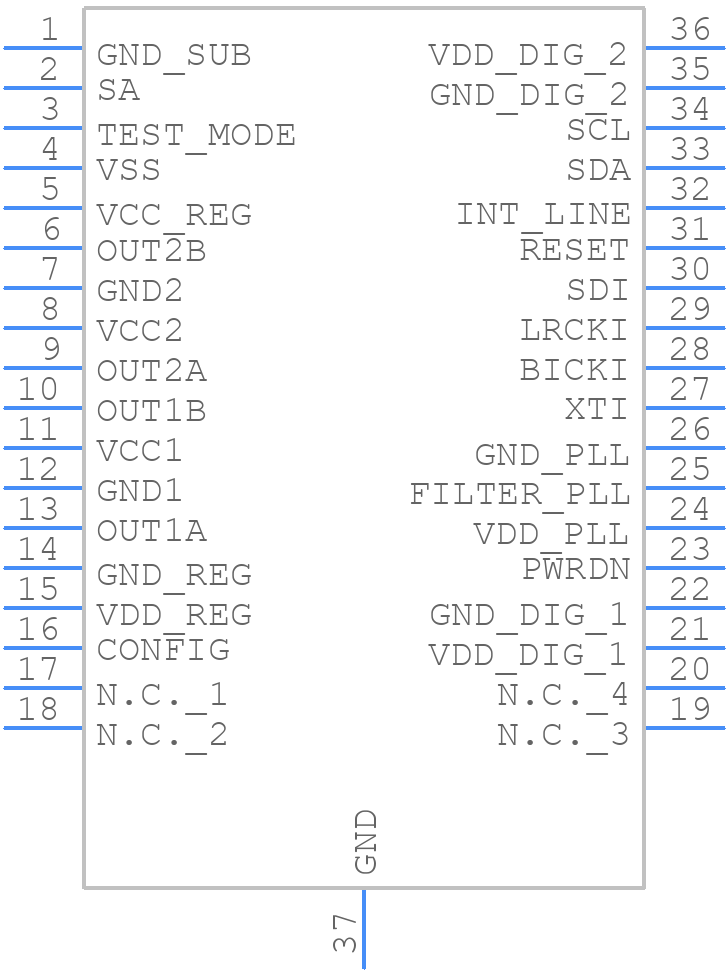

STA333W13TR - STMicroelectronics

STA333W13TR Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the STA333W13TR?
  The recommended PCB layout for the STA333W13TR involves placing the device near the audio jacks, using a ground plane to reduce noise, and keeping the analog and digital grounds separate. A 4-layer PCB is recommended, with the top layer for signals, the second layer for the analog ground, the third layer for the digital ground, and the bottom layer for the power plane.
• How do I optimize the STA333W13TR for low power consumption?
  To optimize the STA333W13TR for low power consumption, use the lowest possible supply voltage, disable the PLL when not in use, use the power-down mode when not playing audio, and minimize the clock frequency. Additionally, use a low-dropout regulator to reduce power consumption and noise.
• What are the thermal considerations for the STA333W13TR?
  The STA333W13TR has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. The device can operate up to 85°C, but thermal design considerations should be made to ensure the device stays within the recommended operating temperature range.
• How do I troubleshoot audio issues with the STA333W13TR?
  To troubleshoot audio issues with the STA333W13TR, check the clock frequency, ensure the correct audio format is selected, verify the audio data is being transmitted correctly, and check for noise or interference on the audio lines. Use an oscilloscope to visualize the audio signals and identify any issues.
• Can I use the STA333W13TR with a different voltage supply?
  The STA333W13TR is designed to operate from a 1.8V to 3.6V supply voltage. While it is possible to use the device with a different voltage supply, it is not recommended as it may affect the device's performance and reliability. Consult the datasheet and application notes for specific guidance on voltage supply requirements.
