STA50813TR - STMicroelectronics

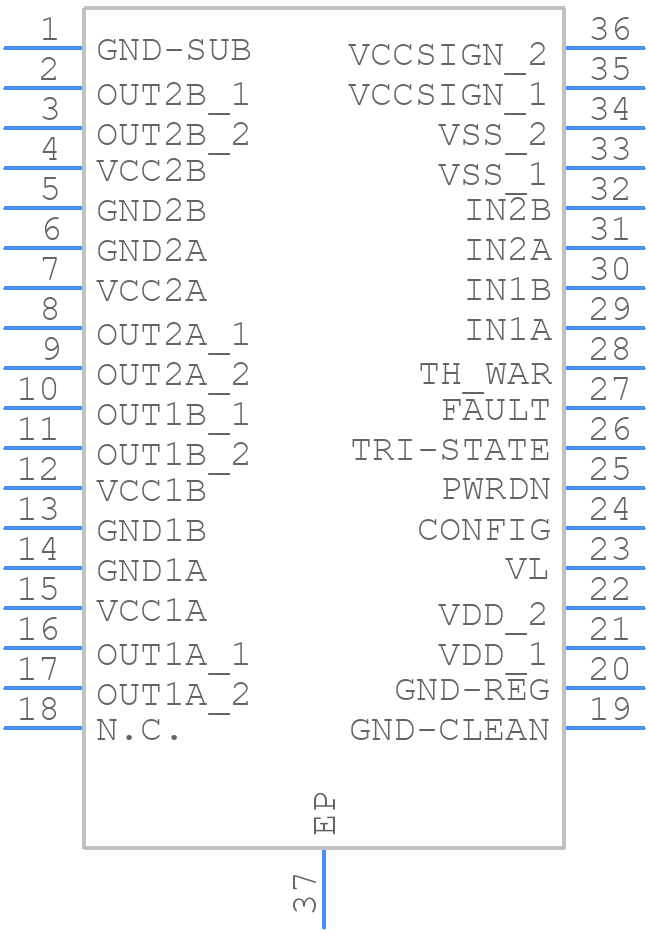

STA50813TR Details

• Manufacturer Part Number:

  STA50813TR

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOIC

• Package Description:

  PowerSO-36

• Pin Count:

  36

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  STMicroelectronics

• YTEOL:

  6.12

• Built-in Protections:

  THERMAL; UNDER VOLTAGE

• Driver Number of Bits:

  4

• Input Characteristics:

  SCHMITT TRIGGER

• Interface IC Type:

  HALF BRIDGE BASED PERIPHERAL DRIVER

• JESD-30 Code:

  R-PDSO-G36

• JESD-609 Code:

  e3

• Length:

  15.9 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  4

• Number of Terminals:

  36

• Operating Temperature-Max:

  90 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  PUSH-PULL

• Output Current Flow Direction:

  SOURCE AND SINK

• Output Current-Max:

  6 A

• Output Peak Current Limit-Nom:

  6 A

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SSOP36,.56

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  245

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  3.43 mm

• Supply Current-Max:

  3 mA

• Supply Voltage-Max:

  36 V

• Supply Voltage-Min:

  10 V

• Supply Voltage-Nom:

  30 V

• Surface Mount:

  YES

• Technology:

  BCD

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Turn-off Time:

  0.1 µs

• Turn-on Time:

  0.1 µs

• Width:

  11 mm
