STA517B - STMicroelectronics

Description: STMICROELECTRONICS - STA517B - Audio Power Amplifier, 360 W, 4 Channel, 10V to 56V, PowerSO, 36 Pins

Download STA517B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

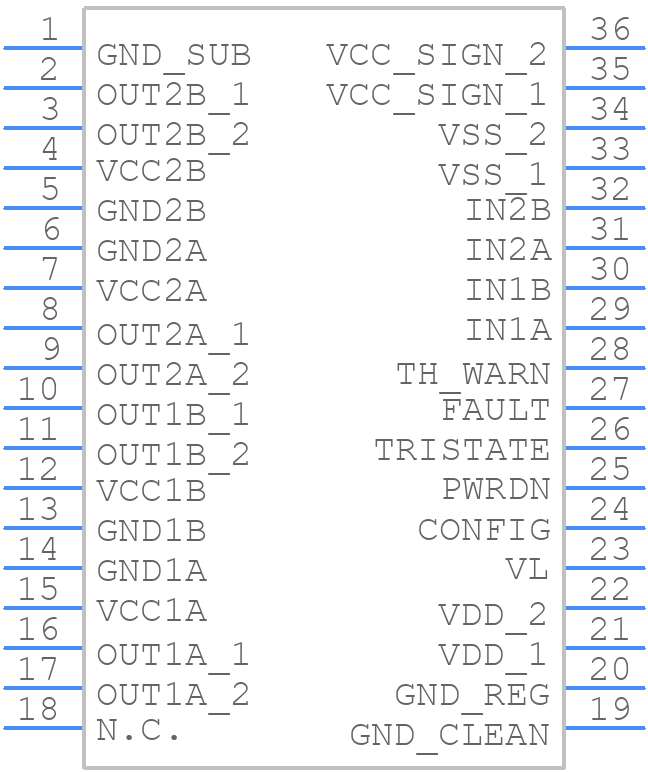

STA517B - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STA517B - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - POWERSO36
click to zoom
3D Models
STA517B - STMicroelectronics - 3D model - Small Outline Packages - POWERSO36
click to zoom

STA517B Details

  • Manufacturer Part Number:

    STA517B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active Unconfirmed

  • Part Package Code:

    SOIC

  • Package Description:

    POWER, SOP-36

  • Pin Count:

    36

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    2

  • Built-in Protections:

    TRANSIENT; THERMAL; UNDER VOLTAGE

  • Interface IC Type:

    HALF BRIDGE BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G36

  • Length:

    15.9 mm

  • Number of Functions:

    4

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    70 °C

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Peak Current Limit-Nom:

    8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP36,.56

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.43 mm

  • Supply Voltage-Max:

    56 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    50 V

  • Surface Mount:

    YES

  • Technology:

    BCD

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    100 µs

  • Turn-on Time:

    100 µs

  • Width:

    11 mm

STA517B Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2861, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
  • The STA517B is a highly configurable device, and the configuration depends on the specific audio application. STMicroelectronics provides a software development kit (SDK) that includes a configuration tool and example code to help engineers configure the device for their specific use case.
  • The STA517B can handle up to 50W of power per channel, but the actual power handling capability depends on the specific application, PCB layout, and thermal management. Engineers should consult the datasheet and application notes for guidance on thermal design and power handling.
  • Yes, the STA517B can be used in a BTL configuration, which allows for higher power output and improved efficiency. However, engineers should consult the datasheet and application notes for guidance on BTL configuration and component selection.
  • The STA517B has built-in overvoltage and overcurrent protection, but engineers should also consider adding external protection components, such as voltage regulators and current limiters, to ensure robustness and reliability in their design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STA517B Overview

Use the download button to access the STA517B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STA51, or try a keyword search, such as Peripheral Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
