STA51813TR - STMicroelectronics

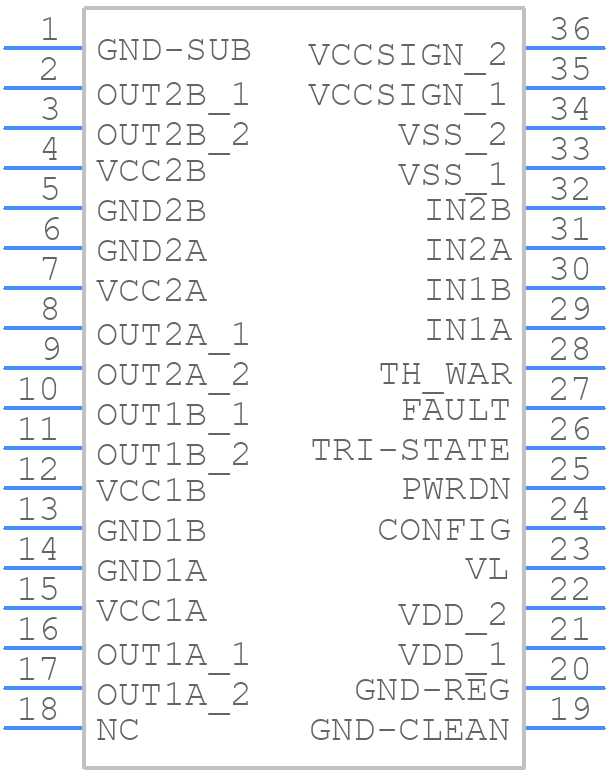

STA51813TR Details

• Manufacturer Part Number:

  STA51813TR

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOIC

• Package Description:

  POWER, SSO-36

• Pin Count:

  36

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  8 Weeks

• Manufacturer:

  STMicroelectronics

• YTEOL:

  6.12

• Built-in Protections:

  OVER CURRENT; THERMAL; UNDER VOLTAGE

• Interface IC Type:

  HALF BRIDGE BASED PERIPHERAL DRIVER

• JESD-30 Code:

  R-PDSO-G36

• JESD-609 Code:

  e3

• Length:

  10.3 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  4

• Number of Terminals:

  36

• Operating Temperature-Max:

  70 °C

• Output Current Flow Direction:

  SOURCE AND SINK

• Output Peak Current Limit-Nom:

  6 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.47 mm

• Supply Voltage-Max:

  36 V

• Supply Voltage-Min:

  10 V

• Supply Voltage-Nom:

  30 V

• Surface Mount:

  YES

• Technology:

  BCD

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Turn-off Time:

  0.1 µs

• Turn-on Time:

  0.1 µs

• Width:

  7.5 mm
