STA533WF - STMicroelectronics

Description: 18-volt, 3-amp, quad power half-bridge 200-mΩ , PowerSSO36 , 0 to 70 °C

Download STA533WF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

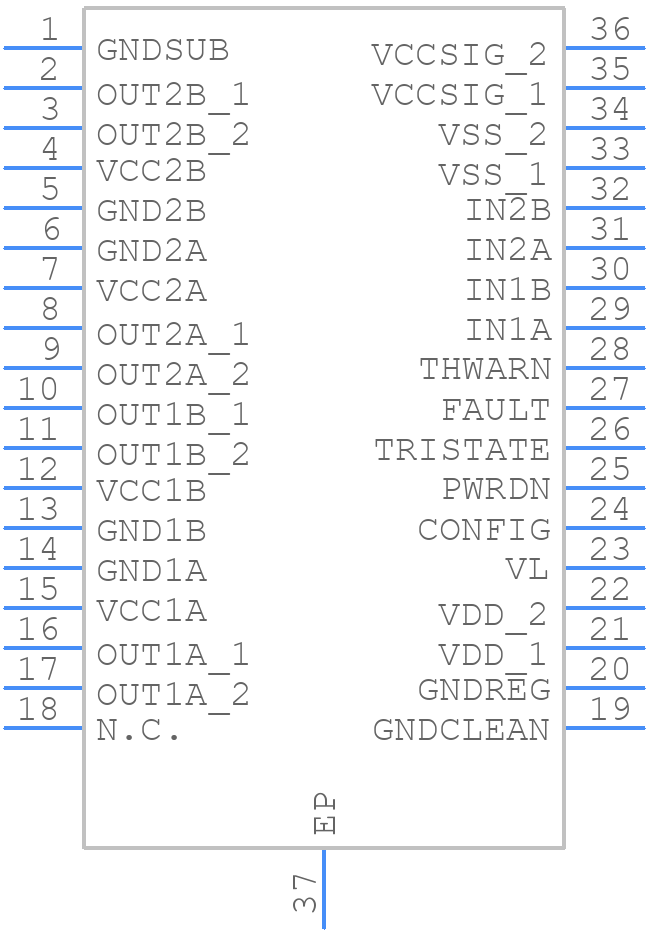

STA533WF - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STA533WF - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO36 EPD
click to zoom
3D Models
STA533WF - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO36 EPD
click to zoom

STA533WF Details

  • Manufacturer Part Number:

    STA533WF

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SSOP-36

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    OVER CURRENT; THERMAL; UNDER VOLTAGE

  • Interface IC Type:

    HALF BRIDGE BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    4

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    70 °C

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Peak Current Limit-Nom:

    4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.47 mm

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BCD

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.06 µs

  • Turn-on Time:

    0.06 µs

  • Width:

    7.5 mm

STA533WF Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4846, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
  • The STA533WF can be configured for different audio formats using the I2C interface. The device has several registers that control the audio format, sampling rate, and bit depth. Refer to the datasheet and application notes for specific register settings and configuration examples.
  • The maximum power consumption of the STA533WF depends on the operating mode and clock frequency. According to the datasheet, the maximum power consumption is around 120 mW in the active mode with a 24.576 MHz clock frequency. However, this value can be reduced by using power-saving modes and optimizing the clock frequency.
  • A low-pass filter can be implemented using external components, such as resistors and capacitors, to filter out high-frequency noise and aliasing. A simple RC filter or a more complex filter design can be used, depending on the specific requirements. Refer to application notes and audio engineering resources for guidance on filter design and implementation.
  • Yes, the STA533WF can be used in battery-powered devices due to its low power consumption and power-saving modes. However, it's essential to consider the overall system power budget, battery life, and power management strategies to ensure optimal performance and efficiency.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STA533WF Overview

Use the download button to access the STA533WF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STA53, or try a keyword search, such as Peripheral Drivers
