STBB2J30-R - STMicroelectronics

Description: STMicroelectronics STBB2J30-R, Boost/Buck Converter 800mA, Adjustable, 1.2 → 4.5 V, 3 MHz, 20-Pin Flip-Chip

Download STBB2J30-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

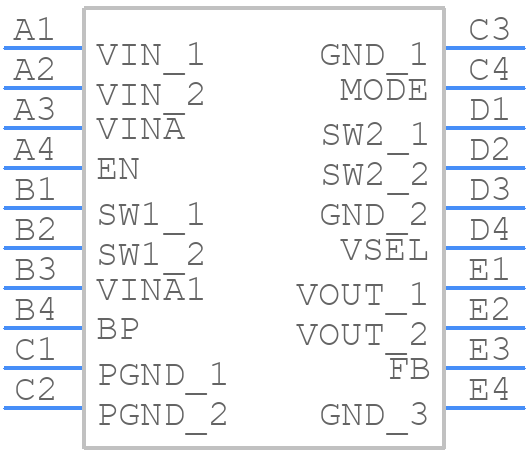

Symbol
STBB2J30-R - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STBB2J30-R - STMicroelectronics PCB footprint - BGA - BGA - Flip Chip 20
click to zoom
3D Models
STBB2J30-R - STMicroelectronics - 3D model - BGA - Flip Chip 20
click to zoom

STBB2J30-R Details

  • Manufacturer Part Number:

    STBB2J30-R

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Flip Chip -20

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.4 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    R-PBGA-B20

  • Length:

    2.06 mm

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Nom:

    3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA20,4X5,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.6 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    3000 kHz

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    1.74 mm

STBB2J30-R Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Avoid placing thermal vias under the device, and keep the PCB surface clean and flat.
  • To ensure reliable operation at high temperatures, ensure that the device is operated within the recommended temperature range (up to 150°C for the STBB2J30-R). Use a suitable thermal interface material (TIM) between the device and the heat sink, and ensure good airflow around the device. Monitor the device's junction temperature and adjust the thermal design accordingly.
  • For EMI and EMC compliance, ensure that the PCB layout is designed to minimize radiation and susceptibility. Use a shielded enclosure, and consider using EMI filters or common-mode chokes on the input and output lines. Ensure that the device is properly decoupled, and use a low-ESR capacitor for the output filter. Follow the recommended layout guidelines for the device's pins and traces.
  • When selecting an output capacitor for the STBB2J30-R, consider the capacitor's equivalent series resistance (ESR), capacitance value, and voltage rating. A low-ESR capacitor with a capacitance value between 10uF to 100uF and a voltage rating of at least 2x the output voltage is recommended. Ensure that the capacitor is placed close to the device and connected to the output pin.
  • For overcurrent protection, ensure that the device is operated within the recommended current rating. Use a current-sensing resistor or a dedicated overcurrent protection IC to monitor the output current. Implement a foldback current limit or a hiccup mode to prevent damage to the device and the load in case of an overcurrent event.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STBB2J30-R Overview

Use the download button to access the STBB2J30-R schematic symbol, PCB footprint, and 3D model.
