STCD1040RDM6F - STMicroelectronics

Description: STCD1040RDM6F, Clock Distribution, 4-Input, 12-Pin TDFN

Download STCD1040RDM6F Model

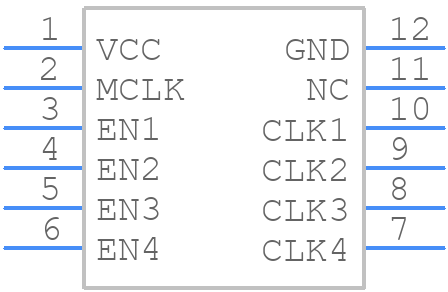

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
STCD1040RDM6F - STMicroelectronics PCB footprint - Other - Other - TDFN12 (2 x 3 mm)
click to zoom
3D Models
STCD1040RDM6F - STMicroelectronics  - 3D model - Other - TDFN12 (2 x 3 mm)
click to zoom

STCD1040RDM6F Details

  • Manufacturer Part Number:

    STCD1040RDM6F

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DFN

  • Package Description:

    2 X 3 MM, ROHS COMPLIANT, TDFN-8

  • Pin Count:

    12

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Family:

    1040

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    SOLCC12,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    2.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

STCD1040RDM6F Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer or 4-layer PCB with a thermal pad connected to a large copper area on the bottom layer to dissipate heat efficiently.
  • Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout guidelines. Also, consider using a heat sink or a thermal shield to reduce the junction temperature.
  • The maximum allowed voltage on the input pins is 5.5V, exceeding which may cause damage to the device.
  • Use ESD protection devices such as TVS diodes or ESD arrays on the input lines, and follow proper handling and storage procedures to prevent ESD damage.
  • Power up the device in the following sequence: VCC, then VIN, and finally the input signals. Power down in the reverse sequence.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STCD1040RDM6F Overview

Use the download button to access the STCD1040RDM6F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STCD1, or try a keyword search, such as Clock Drivers
