STCD2400F35F - STMicroelectronics

Description: Clock Fanout Buffer (Distribution) IC 1:4 52 MHz 16-WFBGA, WLCSP 2.5V ~ 5.1V Surface Mount -20°C ~ 85°C

Download STCD2400F35F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

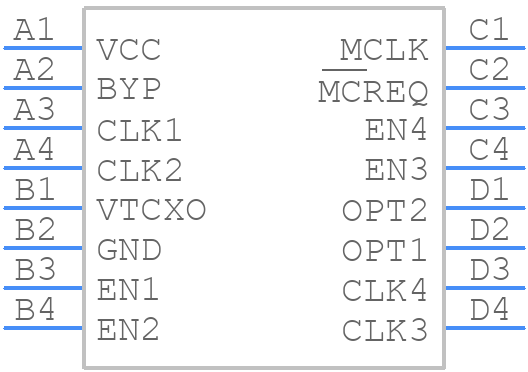

Symbol
STCD2400F35F - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STCD2400F35F - STMicroelectronics PCB footprint - BGA - BGA - 16-WFBGA_2026
click to zoom
3D Models
STCD2400F35F - STMicroelectronics - 3D model - BGA - 16-WFBGA_2026
click to zoom

STCD2400F35F Details

  • Manufacturer Part Number:

    STCD2400F35F

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • JESD-30 Code:

    S-PBGA-B16

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA16,4X4,16

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

STCD2400F35F Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5153, which includes guidelines for thermal pad connection, copper thickness, and via placement to ensure optimal thermal performance.
  • The input capacitor selection depends on the input voltage, output voltage, and output current. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the input voltage, and a capacitance value between 1uF to 10uF. Refer to the application note AN5153 for more detailed guidance.
  • The STCD2400F35F is rated for operation up to 105°C ambient temperature, but it's recommended to derate the output current and voltage to ensure reliable operation. Consult the datasheet and application notes for specific derating guidelines.
  • OVP can be implemented using an external voltage supervisor IC, such as the STMicroelectronics STM660, which monitors the output voltage and shuts down the converter in case of an overvoltage event.
  • A low-ESR ceramic capacitor with a value between 10uF to 22uF is recommended for the output capacitor. The capacitor type and value depend on the output voltage, output current, and desired ripple voltage. Refer to the application note AN5153 for more detailed guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STCD2400F35F Overview

Use the download button to access the STCD2400F35F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STCD2, or try a keyword search, such as Clock Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
