STDRIVE101TR - STMicroelectronics

Description: Triple half-bridge gate driver

Download STDRIVE101TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

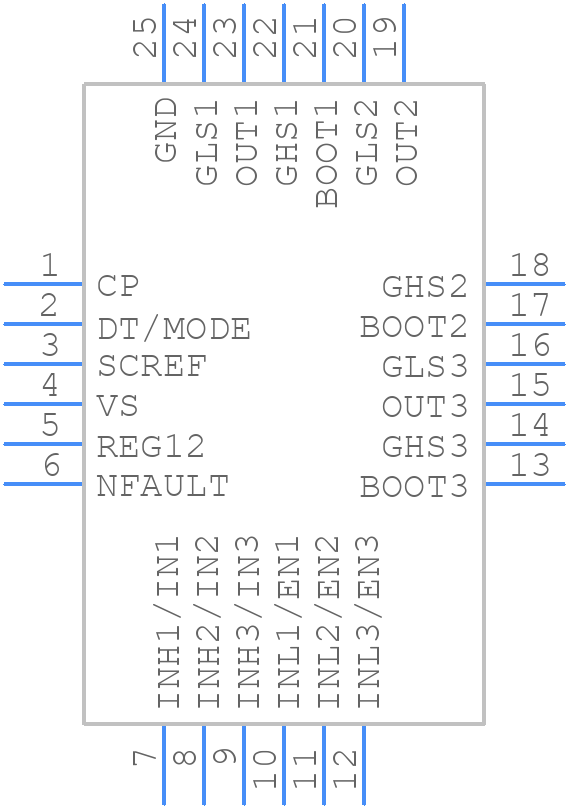

STDRIVE101TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STDRIVE101TR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - STDRIVE101TR
click to zoom
3D Models
STDRIVE101TR - STMicroelectronics - 3D model - Quad Flat No-Lead - STDRIVE101TR
click to zoom

STDRIVE101TR Details

  • Manufacturer Part Number:

    STDRIVE101TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VFQFPN-24

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2020-10-26

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    14

  • High Side Driver:

    YES

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    0.6 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    75 V

  • Supply Voltage-Min:

    5.5 V

  • Supply Voltage-Nom:

    60 V

  • Supply Voltage1-Max:

    89 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Turn-off Time:

    0.12 µs

  • Turn-on Time:

    0.12 µs

  • Width:

    4 mm

STDRIVE101TR Frequently Asked Questions (FAQs)

  • The STDRIVE101TR can operate from -40°C to 150°C (junction temperature). However, the recommended operating temperature range is -40°C to 125°C for optimal performance and reliability.
  • The STDRIVE101TR requires a 5V power supply (VCC) and a 3.3V power supply (VDD) for the internal logic. Ensure that the power supplies are stable and decoupled with capacitors to prevent noise and oscillations.
  • The maximum current rating for the STDRIVE101TR's output stages is 1.5A per channel. However, the actual current handling capability may vary depending on the application and PCB design.
  • The STDRIVE101TR can be configured for half-bridge or three-phase motor control by setting the appropriate configuration pins (e.g., HBP, HBP2, and PHASE) and using the correct external components (e.g., bootstrap diodes and resistors). Refer to the application notes and evaluation boards for more information.
  • The internal voltage regulator (VREG) in the STDRIVE101TR generates a stable 3.3V supply for the internal logic and can also be used to power external components. However, it is not intended to power the output stages or other high-current devices.
