STDRIVE102BH - STMicroelectronics

Description: Triple half-bridge gate driver with programmable currents

Download STDRIVE102BH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

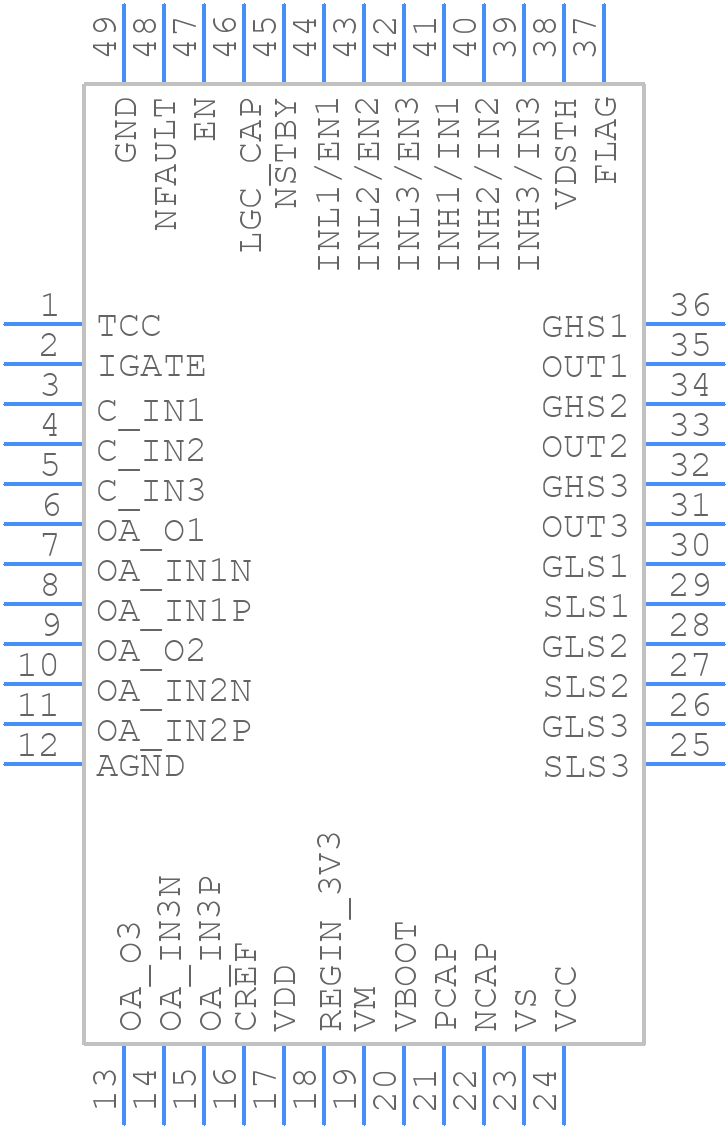

STDRIVE102BH - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STDRIVE102BH - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN 48 lead, 6 x 6 mm, 0.40 mm pitch
click to zoom
3D Models
STDRIVE102BH - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFPN 48 lead, 6 x 6 mm, 0.40 mm pitch
click to zoom

STDRIVE102BH Details

  • Manufacturer Part Number:

    STDRIVE102BH

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    14

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STDRIVE102BH Overview

Use the download button to access the STDRIVE102BH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STDRI, or try a keyword search, such as MOSFET Drivers
