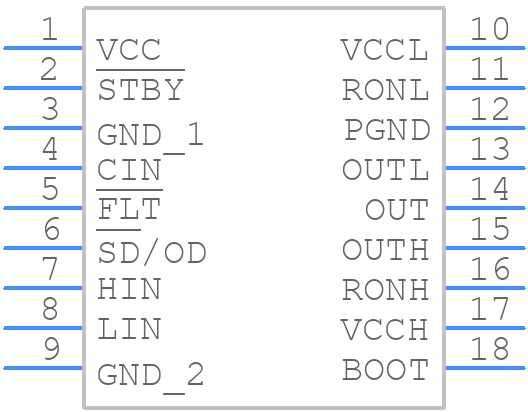

STDRIVEG211Q - STMicroelectronics

STDRIVEG211Q Details

• Manufacturer Part Number:

  STDRIVEG211Q

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  QFN-18

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  STMicroelectronics

• YTEOL:

  8

• High Side Driver:

  YES

• Input Characteristics:

  SCHMITT TRIGGER

• Interface IC Type:

  HALF BRIDGE BASED GAN FET DRIVER

• JESD-30 Code:

  R-XQCC-N18

• Length:

  5 mm

• Number of Functions:

  1

• Number of Terminals:

  18

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  PUSH-PULL

• Output Peak Current Limit-Nom:

  2.4 A

• Output Polarity:

  TRUE

• Package Body Material:

  UNSPECIFIED

• Package Code:

  QCCN

• Package Equivalence Code:

  LCC18,.16X.2,20

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER

• Seated Height-Max:

  1.047 mm

• Supply Current-Max:

  3.5 mA

• Supply Voltage-Max:

  20 V

• Supply Voltage-Min:

  7.5 V

• Supply Voltage-Nom:

  12 V

• Supply Voltage1-Max:

  20 V

• Supply Voltage1-Min:

  7.5 V

• Supply Voltage1-Nom:

  12 V

• Surface Mount:

  YES

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Turn-off Time:

  0.06 µs

• Turn-on Time:

  0.06 µs

• Width:

  4 mm
